Service Telephone:86-755-83294757
Trade Name:MAX17631AATE
Data Manual:MAX17631AATE.pdf
Brand:Maxim
Particular Year:23+

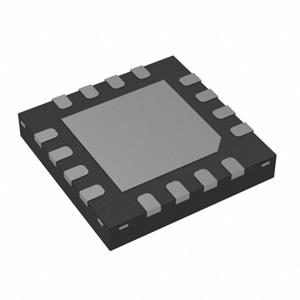

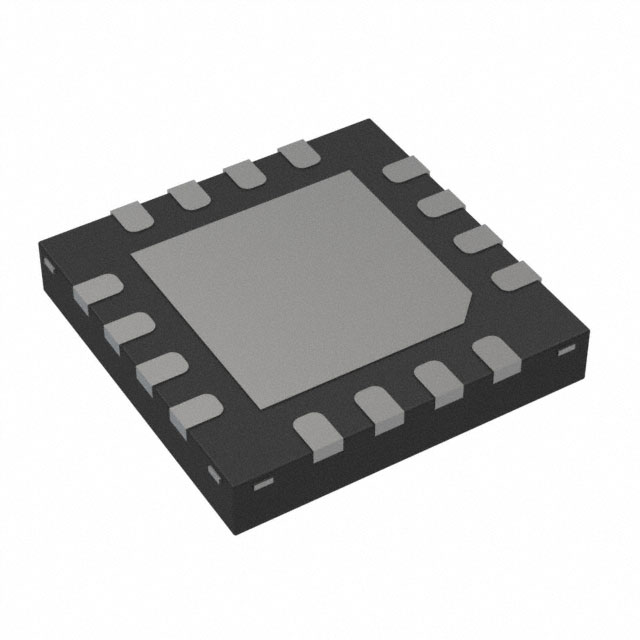

Package:QFN-16
Delivery Date:New and Original
Stock: 1000pcs
The MAX17631AATE is a high efficiency, high voltage, synchronous step-down DC-DC converter with an integrated MOSFET that operates over a 4.5V to 36V input voltage range. The devices can deliver up to 1.5A of current.
The MAX17631AATE utilizes a peak current mode control architecture. The device can operate in three switching states, forced pulse width modulation (PWM), pulse frequency modulation (PFM) or discontinuous conduction mode (DCM), which supports high efficiency at full load and light load conditions. the MAX17631AATE has a very low minimum on-time, which allows for a high switching frequency and a small solution size.
The MAX17631AATE's feedback voltage regulation accuracy is ±1.2% over the -40°C to +125°C temperature range. The device is available in a 16-pin (3mm x 3mm) TQFN package. Simulation models of the device are available.
Features
Reduced external components for lower overall cost
No external synchronous Schottky operation
Internal compensation components
All ceramic capacitor design for compact layout
Reduced inventory of DC-DC regulators
Wide input voltage range of 4.5V to 36V
Adjustable output voltage range from 0.9V to 90% VIN
Up to 1.5A available over the full temperature range
400kHz to 2.2MHz adjustable frequency with external clock synchronization
Available in 16-pin, 3mm x 3mm TQFN package
Reduced power consumption
95% peak efficiency
PFM and DCM modes for high efficiency at light loads
Auxiliary bootstrap power supply (EXTVCC) for improved efficiency
2.8μA shutdown current
Reliable operation in harsh industrial environments
Hiccup overcurrent protection
Adjustable and monotonic startup with pre-biased output voltage
Built-in output voltage monitoring with RESET (active low)
Programmable EN/UVLO thresholds
Thermal Protection
Industrial grade high temperature -40°C to +125°C operating temperature range
Applications
Industrial control power supplies
General purpose point-of-load power supplies
Power distribution regulators
Base station power supplies
Wall Transformer Voltage Regulators
High Voltage Single Board Systems
