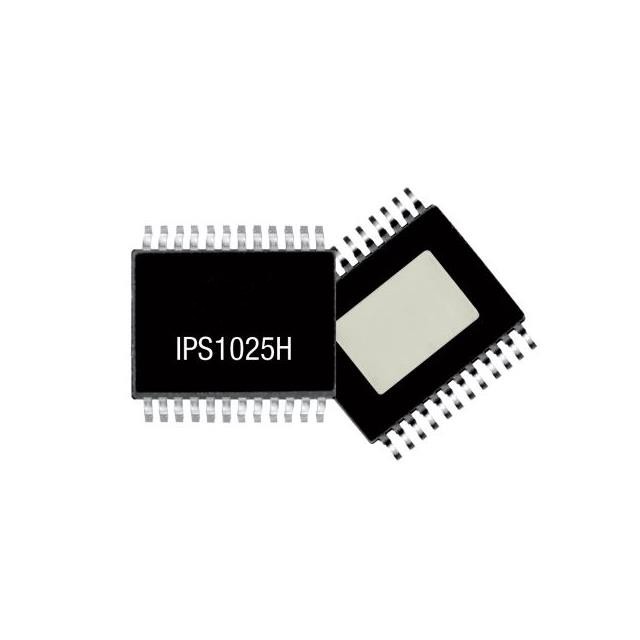

For picture reference, please see the specifications
< >

Commodity Model:IPS1025HTR

Trade Name:IPS1025HTR

Data Manual:IPS1025HTR.pdf

Brand:ST

Particular Year:23+

Package:PowerSSO-24

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ST
Model
IPS1025HTR
Package
PowerSSO-24
Describe
Power Switch/Driver 1:1 N-Channel 5A PowerSSO-24

Product Description

The IPS1025HTR is a single high-side switching IC capable of driving capacitive, resistive or inductive loads with one side grounded.


The extremely low RDS-ON (≤ 25 mΩ, up to TJ = 125 °C) makes this IC suitable for applications with steady-state operating currents up to 2.4 A / 5.6 A. The IPS1025HTR is designed for use in a wide range of applications.


Product attributes

Manufacturer: STMicroelectronics

Product Category: Power Switch ICs - Power Distribution

Type: High Side

Number of Outputs: 1 Output

Output Current: 2.4 A

Current Limit: 3.5 A

On-resistance - Max: 15 mOhms

Operating supply voltage: 8.65 V to 60 V

Minimum operating temperature: - 40 C

Maximum operating temperature: + 150 C

Mounting style: SMD/SMT

Package / Case: PowerSSO-24

Humidity Sensitivity: Yes

Supply voltage - min: 8.65 V to 60 V
