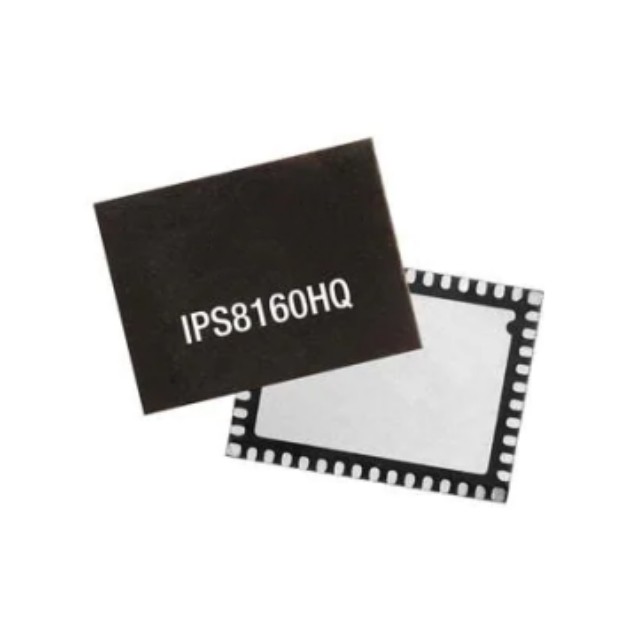

For picture reference, please see the specifications
< >

Commodity Model:IPS8160HQ

Trade Name:IPS8160HQ

Data Manual:IPS8160HQ.pdf

Brand:ST

Particular Year:23+

Package:QFN-48

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ST
Model
IPS8160HQ
Package
QFN-48
Describe
Power Switch/Driver 1:1 N-Channel 700mA 48-QFN (8x6)

Product Description

The IPS8160HQ eight-channel high-side drivers are monolithic devices designed using VIPower M0-3 technology to drive any type of load with one side grounded. These drivers feature CMOS-compatible inputs, very low standby current, undervoltage shutdown, and overload and short-circuit protection with output current limiting.The IPS8160HQ high-side drivers also feature case over-temperature protection for thermal independence of the channels to prevent false grounding and a thermal shutdown diagnostic pin.


Product Attributes

Switch Type: General Purpose

Number of Outputs: 8

Ratio - Input:Output: 1:1

Output Configuration: High End

Output Type: N-Channel

Interface: On/Off

Voltage - Load: 7V ~ 45V

Voltage - Supply (Vcc/Vdd): 7V ~ 45V

Current - Output (Max): 700mA

On Resistance (Typ): 160 mOhm (Max)

Input Type: CMOS

Features: Auto Restart, Status Flags

Fault Protection: Current Limit (Fixed), Overload, Over Temperature, Reverse Battery, Short Circuit, UVLO

Operating Temperature: -40°C ~ 125°C (TJ)

Mounting Type: Surface Mount

Supplier Device Package: 48-QFN (8x6)

Package/Housing: 48-VFQFN Exposed Pad


Applications

Programmable logic control

Vending machines

Industrial PC peripheral input/output

CNC machine tools

General high voltage side switching applications
