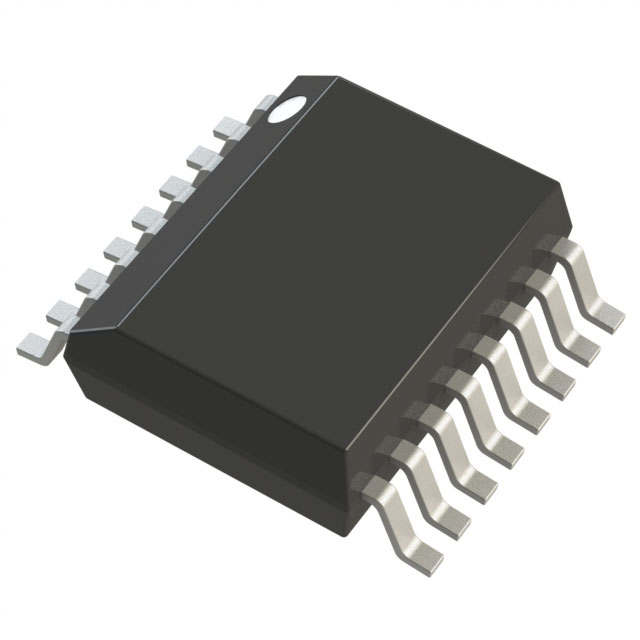

For picture reference, please see the specifications
< >

Commodity Model:MAX16972AGTEB/V

Trade Name:MAX16972AGTEB/V

Data Manual:MAX16972AGTEB/V.pdf

Brand:Maxim

Particular Year:23+

Package:16-QSOP

Delivery Date:New original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Maxim
Model
MAX16972AGTEB/V
Package
16-QSOP
Describe
3A Automotive Hi-Speed USB Protectors with iPhone/iPad and USB 2.0 Charge Detection

Product Description

MAX16972AGTEB/V provide high-ESD and short-circuit protection for the low-voltage internal USB data and USB power line in automotive radio, navigation, connectivity, and USB hub applications.


Features

900MHz Bandwidth USB 2.0 Data Switches

Industry-Leading RDS(ON) Minimizes Voltage Dropon Bus Line to Help Meet USB Voltage Specificationsat Device Connector

Current-Limited 31mΩ (typ) BUS Switch with HighCapacitive Load Capability

Robust Overvoltage and ESD Protection forAutomotive Environment Saves on ExternalProtection Components

Short-to-Battery and Short-to-GND Protection onProtected HVBUS Output

Short-to-Battery and Short-to-HVBUS Protectionon Protected HVD+ and HVD- Outputs

Two 4.0Ω (typ) RON USB 2.0 Data Switches

Integrated Overcurrent and Short-Circuit Autoretry

High ESD Protection (HVD+, HVD-, HVBUS)

±15kV Human Body Model

±15kV IEC 61000-4-2 Air Gap

±8kV IEC 61000-4-2 Contact

20ms Fault-Blanking Timeout Period

Automatic Transitioning of Charge Modes throughIntelligent State Machine for Seamless DeviceIntegration

Integrated Apple iPhone 1.0A Dedicated ChargingMode

Integrated Apple iPad 2.1A Dedicated ChargingMode

USB-IF BC1.2 Charging Downstream Port (CDP)and Dedicated Charging Port (DCP) Modes

Chinese Telecommunication Industry-StandardYD/T 1591-209

USB On-The-Go (OTG) Support

AEC-Q100 Qualified


Applications

Automotive Radio and Navigation

USB Hub

Automotive Connectivity

Telematics
