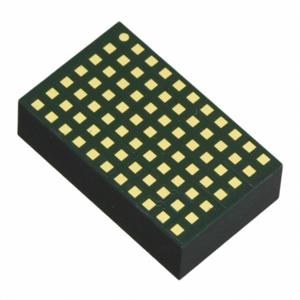

The LTM8061EV-8.4 is a high-efficiency, 32V, 2A μModule® standalone lithium-ion battery charger. The LTM8061EV-8.4 provides a constant current/constant voltage charging characteristic with a maximum charging current of up to 2A. The LTM8061EV-8.4 is optimised for single two-cell battery packs and features a fixed float voltage of 8.2V. The LTM8061EV-8.4 is housed in a thermally enhanced, compact (9mm × 15mm × 4.32mm) moulded resin lead grid array (LGA) package, suitable for automated assembly using standard surface mount equipment.

Product Details:

Model: LTM8061EV-8.4

Package: LGA-77

Type: μModule Battery Charger

Applications:

Industrial handheld instruments

12V to 24V automotive and heavy equipment

Professional video/camera chargers

LTM8061EV-8.4 Product Features:

Wide input voltage range: 4.95V to 32V (absolute maximum of 40V)

Floating voltage options:

Single-cell battery: 4.1V

Programmable charging current: up to 2A

User-selectable charging termination method: C/10 or on-board charging termination timer

Dynamic charging rate programming / soft-start pin

Programmable input current limit

Selectable reverse input protection

NTC resistor temperature monitor

0.5% floating voltage accuracy

Failed battery detection with automatic reset

Compact, flat (9mm × 15mm × 4.32mm) surface-mount LGA package
