The LEOAC08PT-D is a CMOS low power quad 2-input AND gate qualified for use in aerospace environments. It operates from 2 V to 6 V power supply (7 V absolute maximum rating).

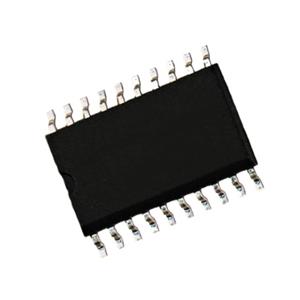

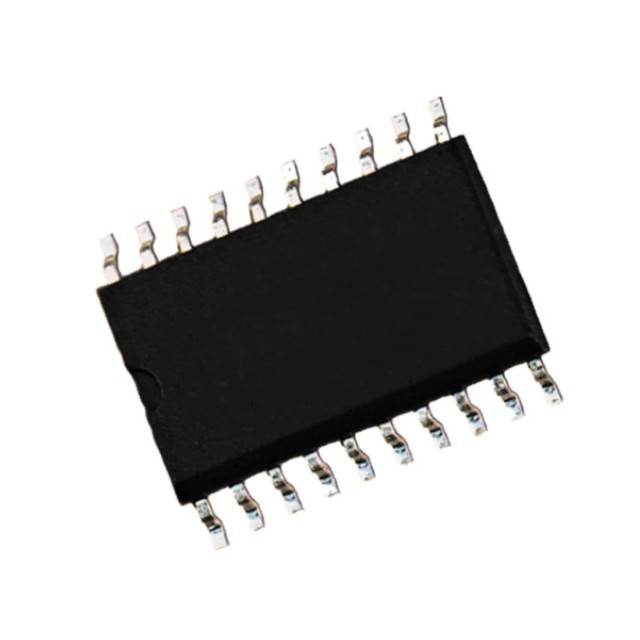

The LEOAC08PT-D can operate over a large temperature range of -40 °C to +125 °C and it is housed in plastic TSSOP-20, Thin-Shrink Small Outline Package, 20 leads, using golden bonding and Nickel/Palladium/Golden-lead-finishing to prevent whiskers.

Features

AND gate

6 V max. operating

7 V max. rating

8.5 ns propagation delay

Nickel/Palladium/Gold-lead-finished (NiPdAu), whisker-free

Gold-wires

RML <1% and CVCM <0.1% guaranteed outgassing

50 krad (Si) Total Ionizing Dose

SEL-free up to 62.5 MeV.cm²/mg

Mass: 80 mg

Compliant with ST-LEO-specification

Applications

Low earth orbit (LEO) applications
