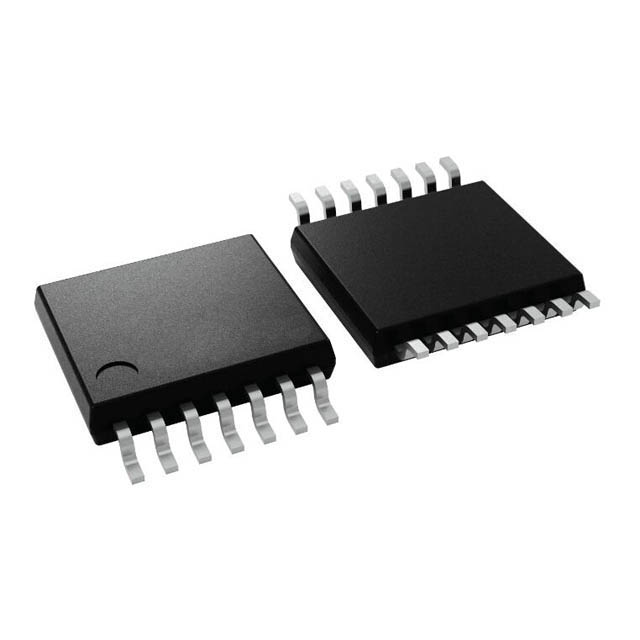

SN54SC4T32MPWTSEP - Radiation-tolerant, four-channel, two-input OR gate with integrated level shifter

Product Overviews

SN54SC4T32MPWTSEP is Radiation Tolerant, Quadruple 2-Input Positive-OR Gates with integrated level shifter. It contains four independent 2-input OR Gates with Schmitt-trigger inputs and extended voltage operation to allow for level translation. Each gate performs the Boolean function Y = A + B in positive logic. The output level is referenced to the supply voltage (V CC) and supports 1.8V, 2.5V, 3.3V, and 5V CMOS levels.

The input is designed with a lower threshold circuit to support up translation for lower voltage CMOS inputs (for example 1.2 V input to 1.8 V output or 1.8 V input to 3.3 V output). Additionally, the 5-V tolerant input pins enable down translation (for example 3.3 V to 2.5 V output).

Product Features

• Wide operating range of 1.2V to 5.5V

• 5.5V tolerant input pins

• Output drive up to 25 mA AT 5V

• Latch-up performance exceeds 250 mA per JESD 17

Applications

• Enable or disable a digital signal

• Controlling an indicator LED

• Translation between communication modules and system controllers
