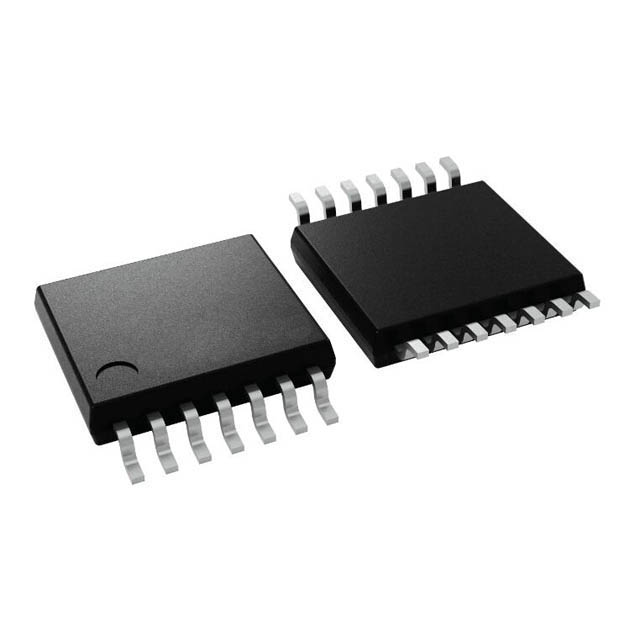

SN54SC4T86MPWTSEP - Radiation-tolerant, four-channel, two-input Logic Gates with integrated level shifter

Product Overviews

SN54SC4T86MPWTSEP contains four independent 2-input XOR Gates with Schmitt-trigger inputs with extended voltage operation to allow for level translation. Each gate performs the Boolean function Y = A ⊕ B in positive logic. The output level is referenced to the supply voltage (V CC) and supports 1.2V, 1.8V, 2.5V, 3.3V, and 5V CMOS levels.

The input is designed with a lower threshold circuit to support up translation for lower voltage CMOS inputs (for example 1.2 V input to 1.8 V output or 1.8 V input to 3.3 V output). Additionally, the 5-V tolerant input pins enable down translation (for example 3.3 V to 2.5 V output).

Product Features

• Wide operating range of 1.2 V to 5.5 V

• 5.5 V tolerant input pins

• Output drive up to 25 mA AT 5-V

• Latch-up performance exceeds 250 mA perJESD 17

Applications

• Enable or disable a digital signal

• Controlling an indicator LED

• Translation between communication modules and system controllers
