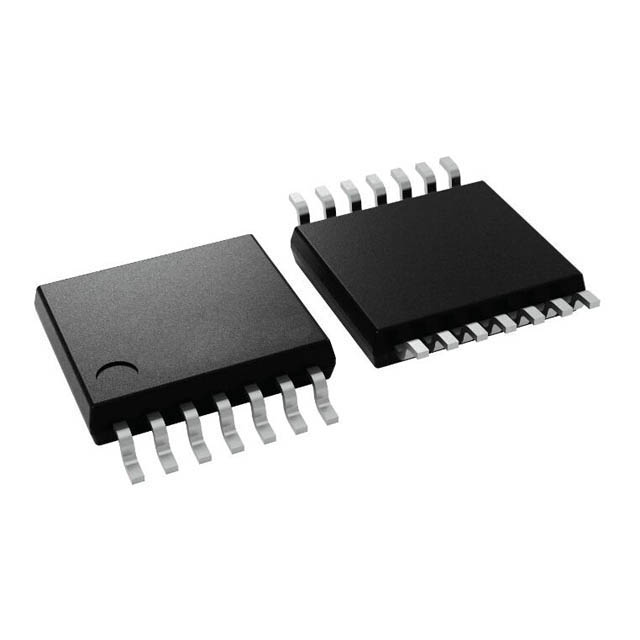

SN54SC4T08MPWTSEP - Radiation-Tolerant, 1.2V to 5.5V, Quadruple 2-Input Positive-Logic Gates With Integrated Translation

Product Overviews

SN54SC4T08MPWTSEP is Radiation-tolerant, four-channel two-input positive Logic gate with logic-level shifter. It contains four independent 2- input AND Gates . Each gate performs the Boolean function Y = A × B in positive logic. The output level is referenced to the supply voltage (V CC) and supports 1.2-V, 1.8V, 2.5V, 3.3V, and 5V CMOS levels.

The input is designed with a lower threshold circuit to support up translation for lower voltage CMOS inputs (for example 1.2 V input to 1.8 V output or 1.8 V input to 3.3 V output). Additionally, the 5-V tolerant input pins enable down translation (for example, 3.3 V to 2.5 V output).

Product Features

• Wide operating range of 1.2V to 5.5V

• Single-supply translating gates at 5/3.3/2.5/1.8/1.2 V VCC

• 5.5V tolerant input pins

• Output drive up to 25mA at 5V

• Latch-up performance exceeds 250 mA per JESD 17

Applications

• Enable or disable a digital signal

• Controlling an indicator LED

• Translation between communication modules and system controllers
