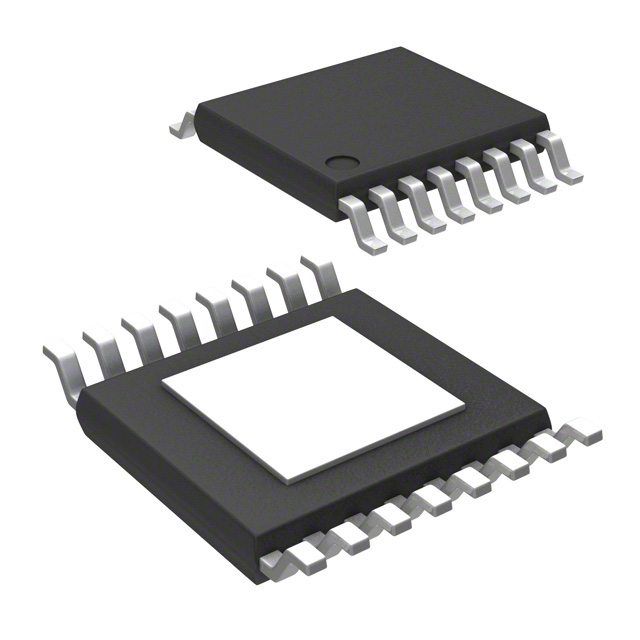

The TPS92623QPWPRQ1 three-channel LED driver features a unique thermal management design that reduces device temperature rise. The TPS92623QPWPRQ1 is a linear driver powered directly from an automotive battery with a wide voltage range and a full current load of up to 150mA per channel. External shunt resistors can be used to share the output current and driven by the driver. The device has comprehensive diagnostic features including open LED, shorted LED ground, and device thermal protection.

Features

- Complies with AEC-Q100 for automotive applications:

- Temperature Class 1: - 40 °C to 125 °C, T A

- Wide input voltage range: 4.5 V to 40 V

- Thermal sharing function via external shunt resistor

- Low supply current in fault mode

- Three channels of high-precision current regulation:

- Current output up to 150 mA per channel

- Accuracy of ±5% over the entire temperature range

- Independent current setting via resistors

- Separate PWM pin for brightness control

- Low voltage drop:

- Low dropout: 600 mV at 150 mA Maximum dropout: 600 mV at 150 mA

- Diagnostics and Protection

- LED open circuit with auto recovery

- LED shorted to ground with auto-recovery

- Diagnostics supported with adjustable thresholds

- Fault bus (N-1) configurable as cascading failures or failures-only channel shutdowns

- Thermal shutdown

- Operating junction temperature range: -40°C to 150°C

Applications

- Exterior taillights: tail lights, centre high mounted brake lights, side marker lights

- Exterior small lights: door handles, blind spot detection indicators, charging ports

- Interior lights: roof lights, reading lights

- General purpose LED driver applications
