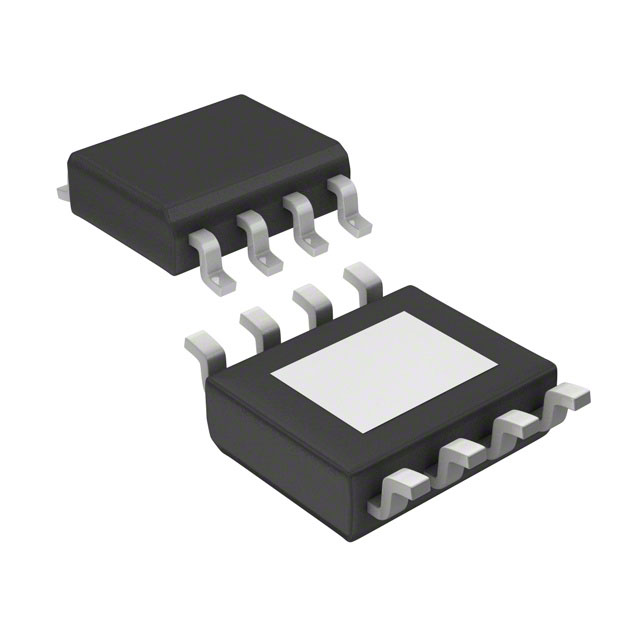

For picture reference, please see the specifications
< >

Commodity Model:STPW12PHR

Trade Name:STPW12PHR

Data Manual:STPW12PHR.pdf

Brand:ST

Particular Year:23+

Package:8-PowerSOIC

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ST
Model
STPW12PHR
Package
8-PowerSOIC
Describe
Current Monitor Regulator 1.5A PowerSO-8

Product Description

STPW12PHR is an integrated electronic power breaker, optimized to monitor the input power. Connected in series to the power rail, it is able to disconnect the electronic circuitry on its output if the power consumption overcomes the programmed limit. When this happens, the device automatically opens the integrated power switch and disconnects the load.


Product Features

Real-time input power sensing

Input voltage range: from 10.5 V to 18 V

Continuous current typ.: 1.5 A

P-channel on resistance typ.: 50 mΩ

Power limit accuracy typ.: 3%

Undervoltage lockout

Adjustable power limitation

PWM mode

Programmable power limit masking time

Programmable auto-retry delay

Thermal shutdown

Enable function

Short-circuit current limit

Operative junction temp. - 40 °C to 125 °C

Available in power SO8 package

Simplifies UL compliance and certification


Applications

White goods

Consumer electronics

Industrial applications

Air contidioner

User interface

Fan motor control
