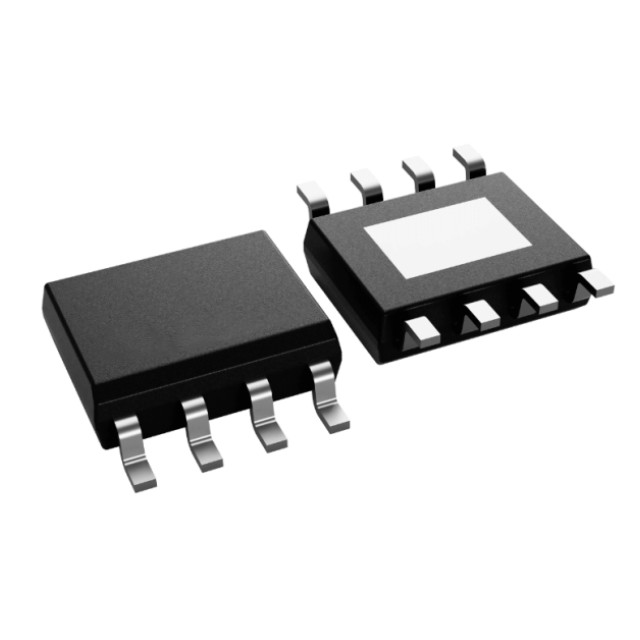

Commodity Model:LMR38020FSQDDARQ1

Trade Name:LMR38020FSQDDARQ1

Data Manual:LMR38020FSQDDARQ1.pdf

Brand:TI

Particular Year:23+

Package:HSOIC-8

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
LMR38020FSQDDARQ1
Package
HSOIC-8
Describe
SIMPLE SWITCHER Automotive Grade 80V, 2.0A, 2.2MHz Buck Converter

Product Description

The LMR38020FSQDDARQ1 synchronous buck converter is designed to regulate over a wide input voltage range, minimising the need for external surge suppression components. The ability to continue to operate at nearly 100% duty cycle as needed during input voltage dips down to 4.2V makes it ideal for 48V battery automotive applications and MHEV/EV systems.


The LMR38020FSQDDARQ1 uses a precision enable terminal to provide flexibility by supporting direct connection to a wide range of input voltages or precise control of device startup and shutdown. A power up flag with built-in filtering and delay provides a true indication of system status, eliminating the need for external monitors. The device features pseudo-random spreading for ultra-low EMI, and the switching frequency can be configured between 200kHz and 2.2MHz to avoid noise-sensitive bands. In addition, the frequency can be selected to improve efficiency at low operating frequencies or to reduce the size of the solution at high operating frequencies.


The device has built-in protection features such as cycle-by-cycle current limiting, intermittent mode short-circuit protection, and thermal shutdown in case of excessive power consumption. The LMR38020FSQDDARQ1 is automotive AEC-Q100 Level 1 compliant and is available in an 8-pin HSOIC PowerPAD integrated circuit package.


Features

- Meets AEC-Q100 for automotive applications

- Temperature Class 1: -40°C to +125°C, TA

- Functional Safety

- Documentation available for functional safety system designs

- Designed for harsh automotive applications

- 4.2V to 80V input voltage range

- 2A continuous output current

- 40µA ultra-low quiescent operating current

- Distance between VIN and GND pins greater than 1.5mm

- Adjustable switching frequency range of 200kHz to 2.2MHz

- Synchronised with external clock frequency

- Spread spectrum reduces EMI

- 97% maximum duty cycle

- Supports startup with pre-biased outputs

- Room temperature ±1.0% tolerance voltage reference

- Precision Enable Terminal

- Easy-to-use device with integrated compensation network for low BOM counts

- Integrated synchronous rectification

- 8-pin HSOIC in PowerPAD™ integrated circuit package

- PFM and Forced PWM (FPWM) Options

- 1A version available LMR38010-Q1

- Use the LMR38020-Q1 and create a custom design with WEBENCH® Power Designer


Applications

- Automotive inverters and motor control

- Automotive DC/DC converters

- Automotive battery management systems

- Automotive 48V light hybrid ECU bias power supplies

Associated Products

Model

Brand

Package

Quantity

Describe

TPS54628DDAR

TI

HSOIC-8

30000

4.5V to 18V, 6A Synchronous Buck Converter with Eco-Mode

LTC3315BMPV

ADI

LQFN-12

2500

Dual-channel, 5V, 2A synchronous step-down DC/DC converter

LTC3315BJV

ADI

LQFN-12

2500

Dual-channel, 5V, 2A synchronous step-down DC/DC converter

LTC3315BIV

ADI

LQFN-12

3000

Dual-channel, 5V, 2A synchronous step-down DC/DC converter

LTC3315BHV

ADI

LQFN-12

2500

Dual-channel, 5V, 2A synchronous step-down DC/DC converter

LTC3315BEV

ADI

LQFN-12

3000

Dual-channel, 5V, 2A synchronous step-down DC/DC converter

LMR33620ARNXR

TI

VQFN-12

6000

SIMPLE SWITCHER® 3.8V to 36V, 2A Synchronous Buck Converter with Ultra-Low EMI

TPS563201DDCR

TI

SOT-23-6

3000

Synchronous Buck Converter with Eco-mode, SOT-23-6

MAX20037ATIA

Maxim

TQFN-28

3000

3.5A, Synchronous USB Buck Converter, TQFN-28

MAX20037ATIB

Maxim

TQFN-28

3000

3.5A, Synchronous USB Buck Converter, TQFN-28
