Trade Name:LM63610DQPWPRQ1
Data Manual:LM63610DQPWPRQ1.pdf
Brand:TI
Particular Year:23+

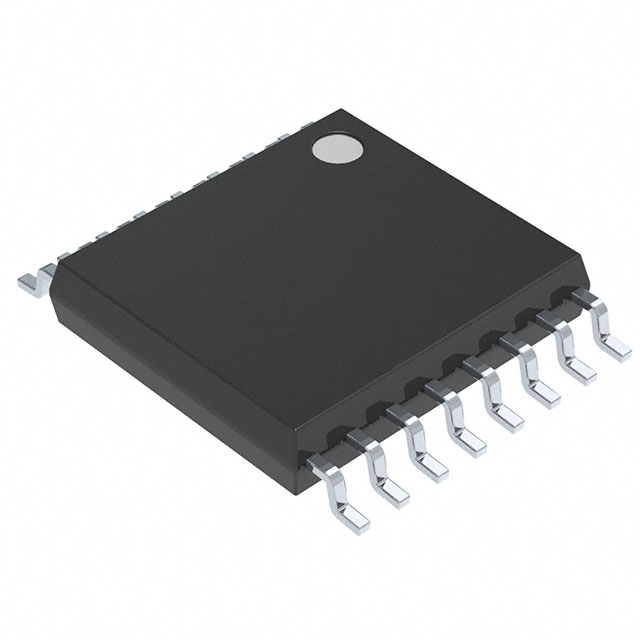

Package:HTSSOP-16
Delivery Date:New and Original
Stock: 1000pcs
The LM63610DQPWPRQ1 regulators are a family of easy-to-use synchronous step-down DC/DC converters for harsh automotive applications. The devices are capable of driving load currents up to 1A with input voltages up to 36V. The converters offer excellent light load efficiency and output accuracy in a small solution size, and features such as the RESET flag and precision enable provide a flexible and easy-to-use solution for a variety of applications. Automatic frequency foldback at light loads improves efficiency while maintaining tight load regulation. The device eliminates many external components through integration techniques and offers pinouts designed for simple PCB layout. Protection features include thermal shutdown, input undervoltage lockout, cycle-by-cycle current limit, and intermittent short-circuit protection.The LM63610DQPWPRQ1 is available in a 16-pin HTSSOP package with PowerPAD™.
Features
- Meets AEC-Q100 for automotive applications
- Device temperature class 1: -40°C to +125°C ambient operating temperature range
- Provides Functional Safety
- Documentation to aid in functional safety system design
- Supports automotive system requirements
- Input voltage range: 3.5V to 36V
- Very short minimum on-time of 50ns
- Good performance pseudo-random spread spectrum CISPR 25 compliant
- Low operating quiescent current of 23µA
- Junction temperature range: -40°C to +150°C
- High design flexibility
- Pin selectable VOUT: 3.3V, 5V, adjustable 1V to 20V
- Pin-to-pin compatibility with LM63615/LM63625/LM63635 (1.5A, 2.5A, or 3.25A)
- Pin-selectable frequency: 400kHz, 2.1MHz, adjustable 250kHz to 2200kHz
- Pin selectable FPWM, AUTO, Sync mode
- TSSOP: thermally enhanced package
- Small solution size
- Highly integrated solution
- Low component count
Applications
- Automotive infotainment systems and instrument clusters
- Automotive Body Electronics and Lighting
- Automotive ADAS
