The LM61480Q5RPHRQ1 buck regulator series are automotive-oriented regulators that provide fixed or adjustable output voltages that can be set from 1V to 95% of the desired input voltage. These regulators operate over a wide input voltage range (3V to 36V) and can withstand transient tolerances up to 42V.

Features

- Complies with AEC-Q100 for automotive applications:

- Temperature Class 1: -40°C to +125°C, TA

- Provides Functional Safety

- Documentation to aid in functional safety system design

- Input voltage range: 3V to 36V

- RESET output with filter and delayed release

- Low EMI can be achieved:

- CISPR 25 Level 5 compliant EVMs

- Pin configurable spread spectrum

- Adjustable SW node rise time

- Above and below AM band operation: pins can be configured for fixed 400kHz and 2.2MHz, or guest adjustable from 200kHz to 2.2MHz

- Low EMI symmetrical pin arrangement

- Pin configurable in light load mode for constant frequency or pulse frequency modulation (PFM)

- High Efficiency Solutions

- 95% efficiency for 8A loads

- 5µA input current at no load in auto mode

- <1µA shutdown current (typical)

- High power density

- Built-in compensation, soft start, current limit, thermal shutdown and UVLO

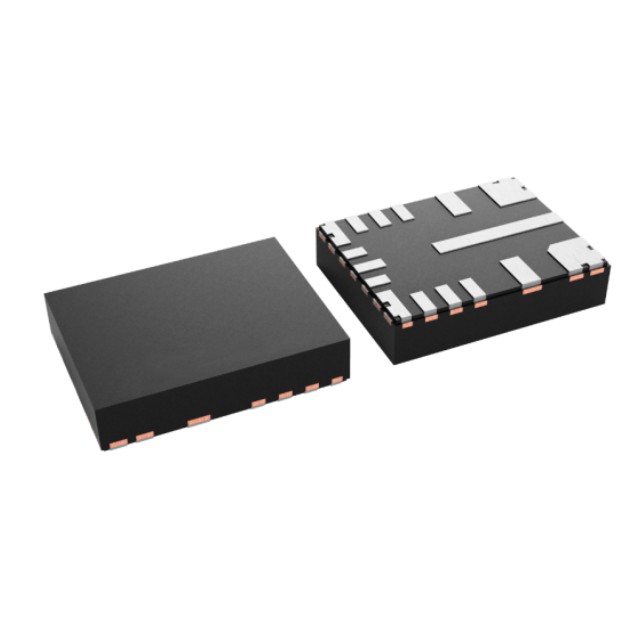

- 4.5mm × 3.5mm wettable side QFN package

- ϴJA = 21.6°C/W, measured on LM61495RPHEVM

Applications

- Automotive infotainment systems

- Instrument clusters

- ADAS
