TPS55165QPWPRQ1 is a highvoltage synchronous buck-boost DC-DC converter.The device provides a stable power-supply output from a wide varying input-power supply such as an automotive car battery. The buck-boost overlap control ensures automatic transition between stepdown and step-up mode with optimal efficiency.TPS55165QPWPRQ1 output voltage can be set to a fixed level of 5 V or 12 V.

Features

2-V to 36-V input voltage range for VOUT = 5 V

5-V or 12-V fixed output voltage

Adjustable output voltage options from 5.7 V to 9 V

Up to 85% efficiency

Automatic transition between step-down and stepup mode

Low-power mode for improved efficiency at light load conditions

Device quiescent current less than 15 μA in lowpower mode

Device shutdown current less than 3 μA

Forced fixed-frequency operation at 2 MHz

Selectable spread spectrum

Wake-up through IGN with power-latch function

Smart power-good output with configurable delay time

Overtemperature protection and output overvoltage protection

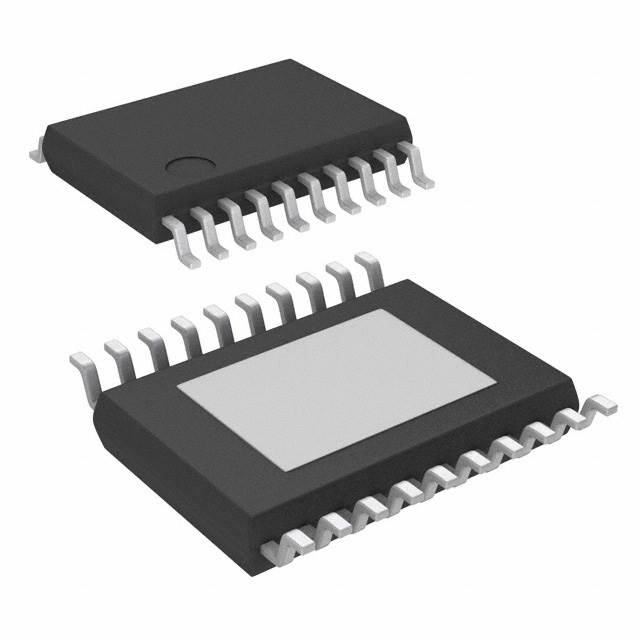

Available in easy-to-use 20-Pin HTSSOP PowerPAD™ package

Applications

Start-stop sensitive automotive power applications

Infotainment and cluster

Body electronics and gateway modules

Industrial applications with fluctuating input voltage

Solar-to-battery charging

Li-ion battery packs
