The LM251772RHAR is a four-switch step-down/boost controller. Whether the input voltage is higher than, equal to or lower than the adjusted output voltage, this device can provide a stable output voltage. In power-saving mode, the LM251772RHAR supports achieving extremely high efficiency throughout the entire output operating range.

The LM251772RHAR can dynamically program the output voltage and average current through an integrated I2C interface. The configuration range of output voltage and average current complies with the requirements of the USB-USB PD standard. The integrated DRV pin can control a disconnected FET to meet the dual-role port (DRP) requirements.

Main specifications

Output type: Transistor driver

Function: Boost pressure/Drop pressure

Output configuration: positive

Topology: Step-down, step-up

Output number: 1

Output stage: 1

Voltage - Power supply (Vcc/Vdd) : 3.5V to 36V

Frequency - Switch: 100kHz to 600kHz

Duty cycle (maximum) : -

Synchronous rectifier: None

Clock synchronization: Yes

Serial interface: I2C

Control characteristics: Current limiting, no-load time control, enable, frequency control, good power supply, soft start, synchronization

Operating temperature: 0°C to 70°C (TJ)

Installation type: Surface mount type

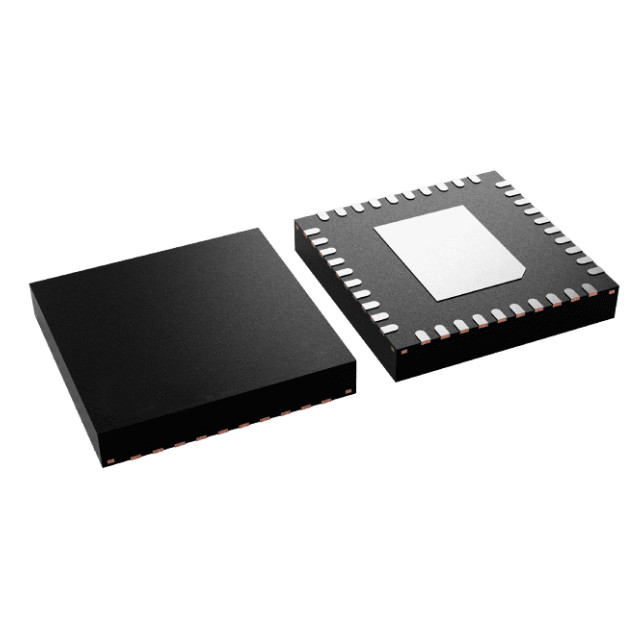

Device package: 40-VQFN (6x6)

Typical application fields of LM251772RHAR

• USB Type-C Power supply source:

- Assembly Line Station

-PC Monitor

-Industrial PC/ Durable PC

-USB AC/DC adapter

• Wireless charging
