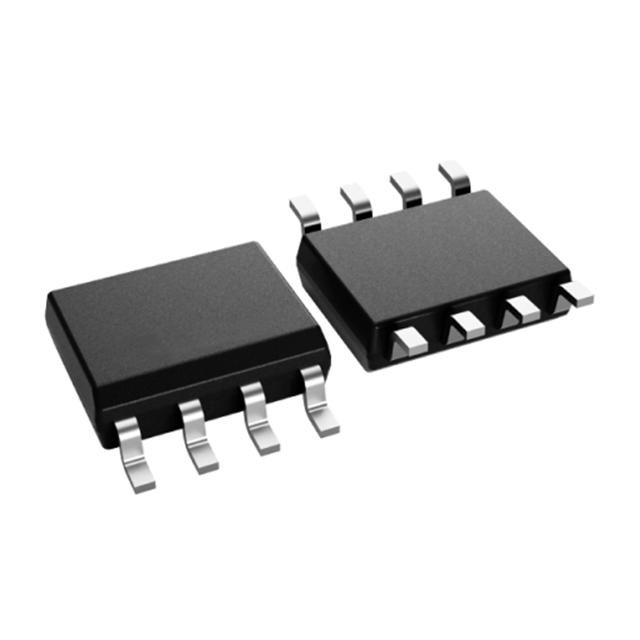

The UC2843ALQD8RQ1 PWM controller is a pin-to-pin compatible control device and an upgraded version of the UC284xAQ/UC284xA-Q1 devices. This controller features the function of controlling current mode or switching mode power supplies, including a higher VCC range (36V), a lower starting current (0.25mA), a stricter operating current tolerance (up to 15mA), and a faster cycle-by-cycle current protection response (100ns).

Feature

The UC284xAQ/UC284xA-Q1 has improved the output driver and reduced the operating/starting current

Optimized for offline and DC-DC converters

Low starting current (<0.5mA

Fine-tune the discharge current of the oscillator

Automatic feedforward compensation

Pulse-by-pulse current limiting

Enhanced load response characteristics

Under-voltage lock with hysteresis

Dual-pulse suppression

High-current totem pole output

Internal fine-tuning of the bandgap reference

A working voltage up to 500 kHz

Provide functional safety functional documentation and assist in the design of functional safety systems

It complies with the AEC-Q100 standard (UC284xA-Q1) and has the following results:

Device temperature class: 1 (-40°C to 125°C)

Device human body model (HBM) classification grade: 2 (±2kV)

Device CDM classification grade: C6 (≥1000V)

In addition, the UC2843ALQD8RQ1 robust output driver features shorter rise and fall times (up to a maximum of 75ns), which can reduce switching losses and has a more powerful driver capability, with its output low level far below the FET threshold voltage.

Typical applications of UC2843ALQD8RQ1

Switching Mode Power Supply (SMPS

DC-DC converter

Power module

Industrial Power Supply Unit (PSU

Battery-powered PSU

Traction inverter bias power supply

OBC and DC/DC converter isolated bias power supply

Isolated power supply for HVAC compressor module
