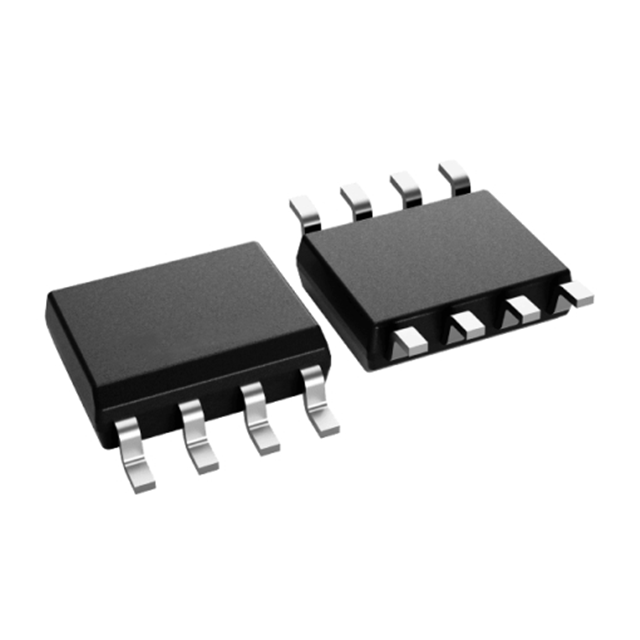

The UC2845ALQD8RQ1 device is a high-performance and economical current-mode PWM controller for automobiles produced by Texas Instruments, belonging to the UC2845L-Q1 series. This device adopts an 8-pin SOIC package and can operate at a frequency of up to 500kHz, making it suitable for both offline and DC/DC converters.

Detailed parameters

Topology: Boost, Buck, Flyback

Number of Output terminals: 1 Output

Switching frequency: 500 kHz

Duty cycle - Maximum: 50%

Input voltage: 10V

Output voltage: 4.95V to 5.05V

Output current: 1 A

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 125 ° C

Installation style: SMD/SMT

Packaging/Cabinet: SOIC-8

Packaging: Reel

Encapsulation: Cut Tape

Descent time: 25 ns

Input voltage - maximum value: 30 V

Working power supply current: 25 mA

Working power supply voltage: 10V

Rise time: 25 ns

In addition, the UC2845ALQD8RQ1 controller can reduce switching losses and has a more powerful driving capability, with its output low level far below the FET threshold voltage.

Application scenarios

UC2845ALQD8RQ1 is often used in the design of switching power supplies, such as mobile phone chargers, adapters and other scenarios that require high-efficiency and high-reliability power supplies. It integrates error amplifiers, oscillators and other modules internally, and the output voltage and frequency can be adjusted through external components. ‌
