TMP392A2DRLR——Dual-channel (over-temperature and over-warmth), resistor-programmable thermal switch, SOT-5X3-6

The TMP392A2DRLR belongs to a series of ultra-low power, dual-channel, resistor-programmable temperature switches, providing protection and detection against system overheating events within the 30°C to 130°C range. The TMP392A2DRLR offers dual overheat (hot, warm) detection. The trip temperature (TTRIP) and thermal hysteresis (THYST) options are programmable via two E96 series resistors (1% tolerance) connected to the SETA and SETB pins. The resistance range for Channel A is 1.05KΩ to 909KΩ, offering 48 distinct values. The resistance range for Channel B is 10.5KΩ to 909KΩ.

TMP392A2DRLR Product Features:

Resistor-programmable temperature trip points and hysteresis options

Resistor tolerance enables zero error

Hysteresis options: 5°C, 10°C, and 20°C

Dual outputs for over-temperature detection

Channel A (Over-temperature - Hot): +30 to +124°C, 2°C steps

Channel B (Over-temperature - Warm): +30 to +105°C, 5°C steps

Accuracy grade options (maximum within +30°C to +130°C range):

Grade A2: ±3.0°C (±1.5°C within +30°C to +70°C range)

Grade A3: ±3.5°C (±2.0°C within +30°C to +70°C range)

Ultra-low power consumption: 0.5µA (typical) at 25°C

Supply voltage: 1.62 to 5.5V

Open-drain output

Trip test function supports in-system testing

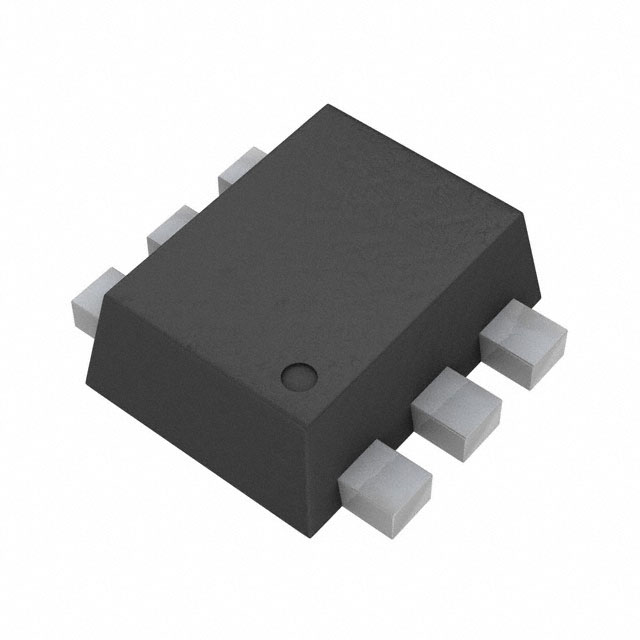

Available in SOT-563 (1.60mm × 1.20mm), 6-pin package

TMP392A2DRLR Applications:

DC/AC inverters

DC/DC converters

Temperature transmitters

Environmental control systems (ECS)

Power tools

Mobile power supplies

Lighting control

Industrial robotics

Machine vision

STBs and DVRs

WLAN/Wi-Fi access points
