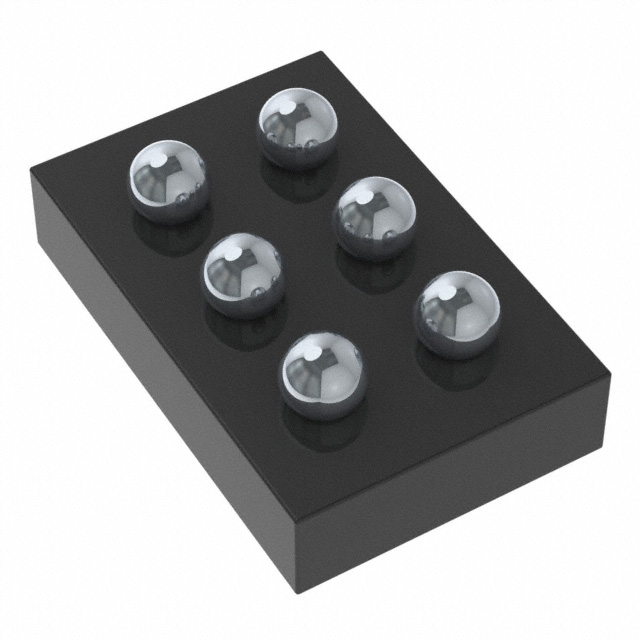

TMP119AIYBGR: ±0.08°C precision digital temperature sensor with enhanced strain tolerance, DSBGA-6

Model: TMP119AIYBGR

Package: DSBGA-6

Type: Digital Temperature Sensor

Overview:

The TMP119AIYBGR is a high-precision digital temperature sensor. This device is designed to meet the accuracy requirements for medical electronic thermometers specified in ASTM E1112 and ISO 80601. The TMP119AIYBGR provides 16-bit temperature readings with a resolution of 0.0078°C and achieves accuracy up to ±0.08°C over the 0°C to 45°C operating range without requiring calibration.

The TMP119AIYBGR features an interface compatible with both I²C and SMBus™, incorporates programmable alarm functionality, supports up to four devices on a single bus, and includes an integrated EEPROM for device programming alongside an additional 48 bits of memory for general-purpose applications. The TMP119 operates within a supply voltage range of 1.7V to 5.5V, typically consuming 3.5µA during a 1Hz conversion cycle.

TMP119AIYBGR Product Attributes:

Sensor Type: Digital

Sensing Temperature - Local: -55°C to 150°C

Output Type: I²C/SMBus

Supply Voltage: 1.7V to 5.5V

Resolution: 16 bits

Features: Single-trigger, Standby Mode, Shutdown Mode

Accuracy - Maximum (Minimum): ±0.03°C (±0.2°C)

Test Conditions: -55°C to 150°C (150°C to 175°C)

Operating Temperature: -55°C to 150°C

Mounting Type: Surface Mount

Package/Housing: 6-UFBGA, DSBGA

Supplier Device Package: 6-DSBGA (1.49x0.95)
