Service Telephone:86-755-83294757
Trade Name:Temperature Sensor
Brand:TI
Particular Year:20+
Package:WSON-10
Delivery Date:New and Original
Stock: 12700pcs

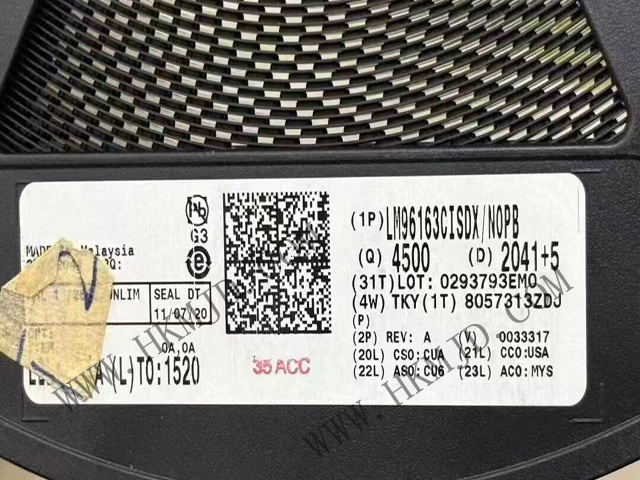

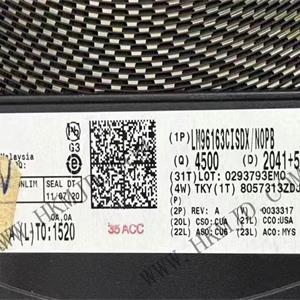

The LM96163CISDX is a digital temperature sensor introduced by Texas Instruments (TI) that features remote and local temperature monitoring capabilities and integrated PWM fan control. The chip is packaged in a 10-WSON (3x3mm) package and supports SMBus/I2C interfaces, making it widely applicable in computer processors, GPUs, ASIC thermal management, and industrial control equipment.
Core Features
Temperature Monitoring
Local Temperature Measurement: Monitors the chip's own temperature (-40°C to +85°C).
Remote Temperature Measurement: Supports diode-connected transistors (e.g., 2N3904) or built-in thermistors in CPUs/GPUs, with a maximum measurement range of 255.875°C and accuracy of ±3°C.
TruTherm BJT Compensation Technology: Optimises temperature measurement accuracy for processors manufactured using 45nm/65nm/90nm processes.
Smart Fan Control
Integrated PWM output (22.5kHz) to drive a 4-pin fan.
12-step programmable lookup table (LUT) supports non-linear temperature control curves, reducing fan noise.
RPM input for real-time monitoring of fan speed.
Alarm and Protection
ALERT output: Notifies the host of abnormal temperature.
TCRIT output: Triggers system shutdown (critical temperature protection).
Product Parameters
Supply Voltage: 3V to 3.6V
Interface: SMBus 2.0/I2C
Resolution: 1/8°C (expandable to 1/32°C)
Package: 10-WSON (3x3mm)
Operating temperature: -40°C to +85°C
Applications
• Processor thermal management
• Electronic testing and office equipment
• Industrial control systems
