Trade Name:Temperature Sensor
Brand:NXP
Particular Year:22+
Package:HWSON8
Delivery Date:New and Original

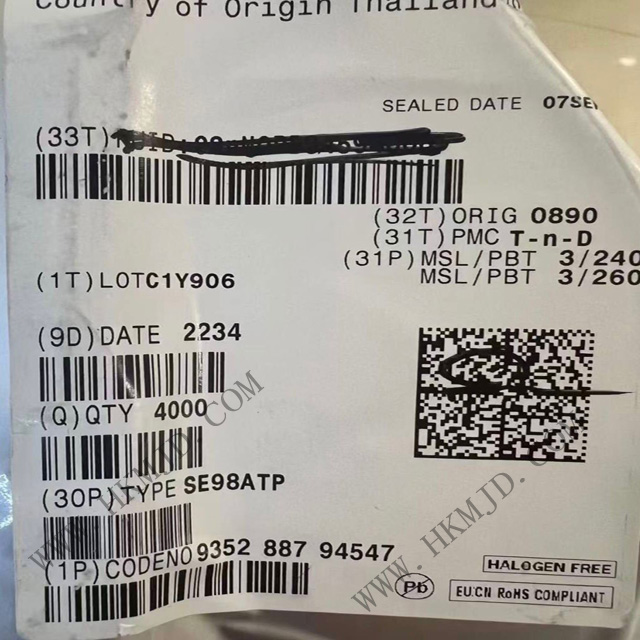

Stock: 4000pcs
SE98ATP is a digital temperature sensor designed by NXP for DDR2/DDR3/DDR4 memory modules compliant with the JEDEC-JC42.4 standard. It features an 8-pin HWSON package (2 mm × 3 mm) and is directly soldered onto the DIMM board to monitor the temperature of DRAM chips in real time, providing data for system thermal management, fan speed control, safe underclocking, or emergency shutdown.
SE98ATP Features
• Complies with JEDEC Class B specifications: typical error of ±0.5 °C in the 75 °C to 95 °C range, with a maximum of ±1 °C
• 11-bit ADC with a resolution of 0.125 °C and an update rate of 8 Hz
• Open-drain EVENT pin, configurable as a temperature control comparator or interrupt output, supporting three events: over-temperature, under-temperature, and critical temperature
• Shutdown current only 0.1 µA, operating current 250 µA (typical)
• I²C/SMBus interface, clock 0 Hz-400 kHz, built-in SMBus TIMEOUT anti-lockup
• Three address pins, up to 8 devices can be connected to a single bus
• ESD protection: HBM 2 kV, MM 250 V, CDM 1 kV; passed JESD78 100 mA lock test
SE98ATP Technical Specifications
Temperature range: -40 °C to +125 °C
Supply voltage: 1.7 V to 3.6 V
Typical accuracy: ±0.5 °C @ 75 °C/95 °C; ±1 °C @ 40 °C–125 °C
Resolution: 0.125 °C
Interface: I²C/SMBus, 400 kHz maximum
Package: 8-HWSON (2 mm × 3 mm)
Event output: Open-drain, 0.9 V–3.6 V pull-up
Temperature drift: < 0.05 °C/°C
Hysteresis threshold: 0 °C / 1.5 °C / 3 °C / 6 °C programmable
SE98ATP Typical Applications
• Server, laptop, desktop DDR2/3/4 DIMM thermal management
• Memory module temperature control for storage arrays, NAS, and enterprise-class switches
• Memory temperature monitoring for automotive infotainment systems
• Memory thermal protection for industrial PCs and single-board computers
• Temperature control for high-end graphics cards and SSD caches
