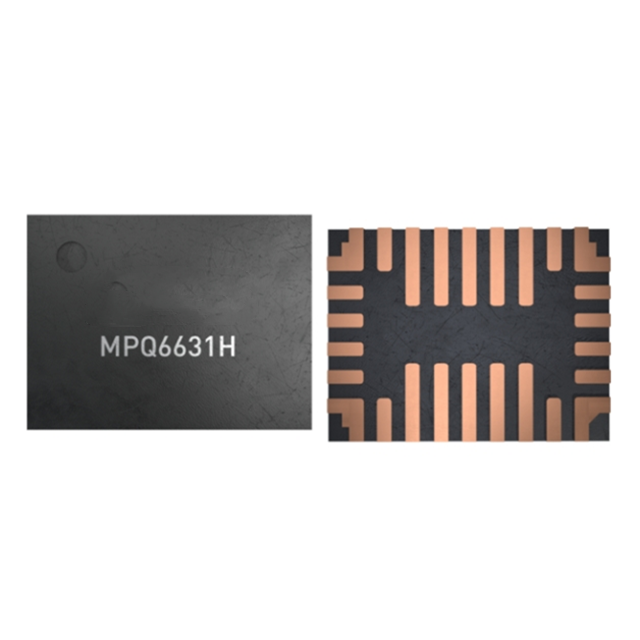

For picture reference, please see the specifications
< >

Commodity Model:MPQ6631HGLTE

Trade Name:Motor Drivers

Brand:MPS

Particular Year:25+

Package:TQFN-26

Delivery Date:New and original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
MPS
Model
MPQ6631HGLTE
Package
TQFN-26
Describe
35V input, 3A peak phase current, three-phase BLDC motor driver

Product Description

The MPQ6631HGLTE is a three-phase brushless DC (BLDC) motor driver featuring an integrated power MOSFET. This device can drive a three-phase BLDC motor through one or three external Hall sensors. Within the input voltage range of 3.6V to 35V (VIN), its peak phase current can reach up to 3A.


The MPQ6631HGLTE mainly has the following specifications:

Motor type - Stepper: -

Motor type - AC, DC: Brushless DC (BLDC)

Function: Driver - fully integrated, control and power stage

Output configuration: Half bridge (3

Interface: PWM

Technology: Power MOSFET

Step resolution: -

Application: Fan motor driver

Current - output: 3A

Voltage - Power supply: 3.6V to 35V

Voltage - Load: 3.6V to 35V

Operating temperature: -40°C to 150°C (TJ)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount, wettable side wing

Package/Housing: 26-PowerWFQFN

Package: 26-TQFN (3x4)


Application scenarios

The MPQ6631HGLTE is suitable for fields such as automotive electronics that require high reliability and complies with the AEC-Q100 certification standard.
