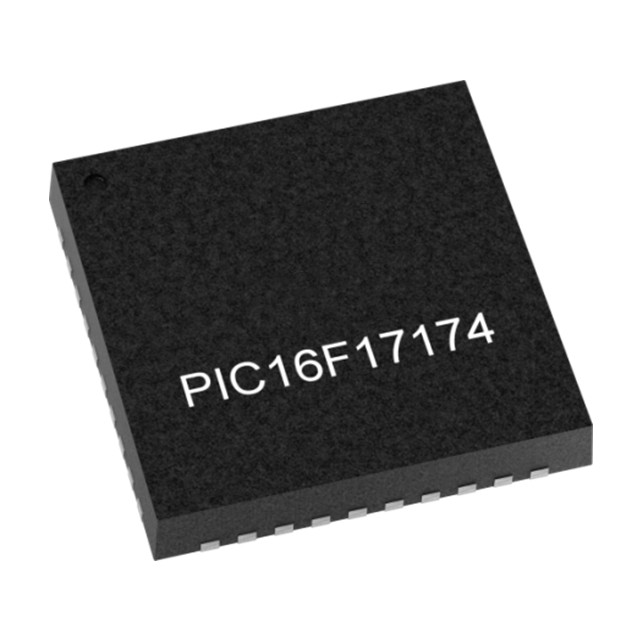

The PIC16F17174T-I/MP is an 8-bit RISC architecture microcontroller launched by Microchip, with a main frequency of up to 32MHz and a memory range of 7KB. This single-chip microcomputer features highly integrated analog peripherals and flexible communication interfaces, making it suitable for low-cost and energy-saving sensor applications.

Core parameters

Core processor: PIC

Kernel specification: 8 bits

Speed: 32MHz

Connection capabilities: I2C, LINbus, RS-232, RS-485, SPI, UART/USART

Peripherals: Undervoltage detection/reset, POR, PWM, WDT

I/O count: 35

Program storage capacity: 7KB (7K x 8)

Program memory type: Flash memory

EEPROM capacity: 128 x 8

RAM size: 512 x 8

Voltage - Power supply (Vcc/Vdd) : 1.8V to 5.5V

Data converter: A/D 58x12b; D/A 2x8b

Oscillator types: external, internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Device package: 40-QFN (5x5)

In addition, the PIC16F17174T-I/MP integrates a low-noise operational amplifier, a 12-bit differential analog-to-digital converter (ADCC) with computing capabilities, and two 8-bit digital-to-analog converters (Dacs), supporting signal gain and filtering processing.

Application field

The PIC16F17174T-I/MP microcontroller is widely used in scenarios such as sensor networks, the Internet of Things, and white goods that require high-resolution signal processing and low power consumption. For example, smart home appliance control boards, environmental monitoring nodes, etc. ‌
