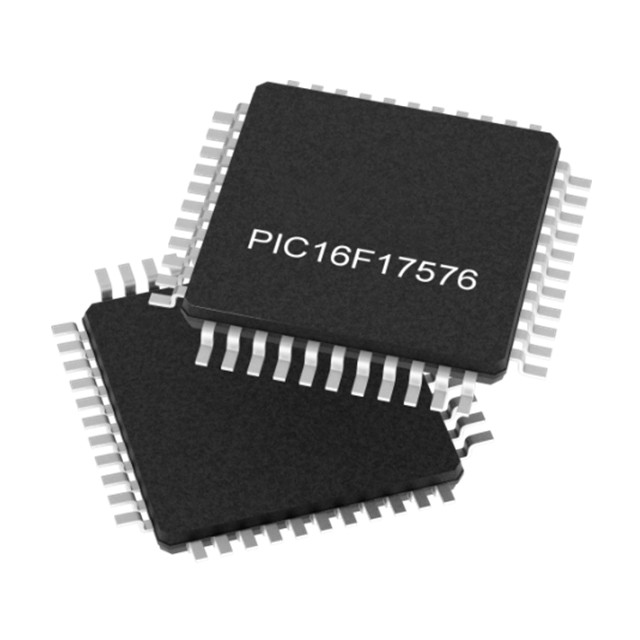

The PIC16F17576T-I/PT microcontroller features a set of analog-centered peripherals, providing an effective single-device approach for implementing mixed-signal and sensor solutions. This MCU is equipped with up to four operational amplifiers and a 12-bit differential analog-to-digital converter (ADC), supporting an automatic averaging function and enabling precise signal measurement over a wide input range.

Its performance parameters include:

Core processor: PIC

Kernel specification: 8 bits

Speed: 32MHz

Connection capabilities: I2C, LINbus, RS-232, RS-485, SPI, UART/USART

Peripherals: Undervoltage detection/reset, POR, PWM, WDT

I/O count: 36

Program storage capacity: 28KB (28K x 8)

Program memory type: Flash memory

EEPROM capacity: 256 x 8

RAM size: 2K x 8

Voltage - Power supply (Vcc/Vdd) : 1.8V to 5.5V

Data converter: A/D 35x12b SAR; D/A 2x10b

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Device package: 44-TQFP (10x10)

The PIC16F17576T-I/PT single-chip microcomputer is widely used in analog signal measurement in fields such as environmental and industrial monitoring, smart home, and building automation. Key applications include vibration and strain measurement, flow metering, gas detection, cold asset tracking and motion sensing.
