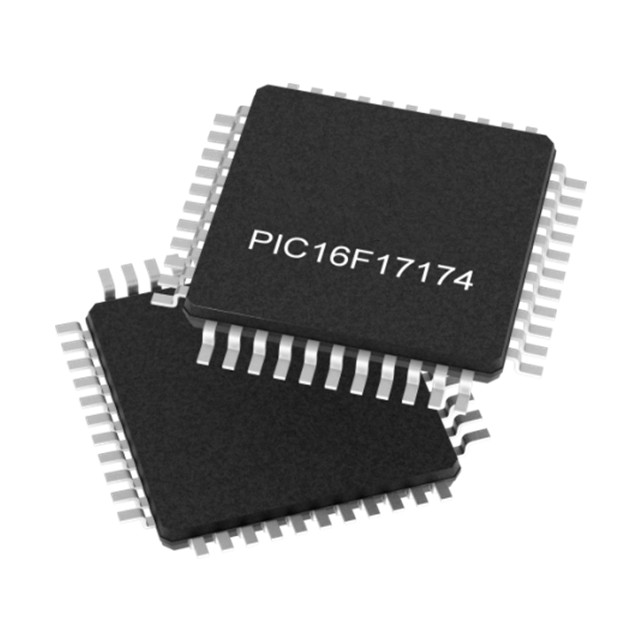

The PIC16F17174T-I/PT 8-bit microcontroller features advanced analog peripherals, making it highly suitable for original sensor applications that require signal gain or filtering. The PIC16F17174T-I/PT MCU integrates a low-noise operational amplifier (operational amplifier), a 12-bit differential analog-to-digital converter (ADCC) with computing capabilities, two 8-bit digital-to-analog converters (DAC), a 16-bit pulse width modulation (PWM) peripheral, and more waveform control and communication peripherals. This device is compact in size and rich in functions, making it suitable for low-cost and energy-saving analog sensor applications with high resolution requirements.

Core parameters

Core processor: PIC

Kernel specification: 8 bits

Speed: 32MHz

Connection capabilities: I2C, LINbus, RS-232, RS-485, SPI, UART/USART

Peripherals: Undervoltage detection/reset, POR, PWM, WDT

I/O count: 35

Program storage capacity: 7KB (7K x 8)

Program memory type: Flash memory

EEPROM capacity: 128 x 8

RAM size: 512 x 8

Voltage - Power supply (Vcc/Vdd) : 1.8V to 5.5V

Data converter: A/D 58x12b; D/A 2x8b

Oscillator types: external, internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Device package: 44-TQFP (10x10)

Application scenarios

The PIC16F17174T-I/PT single-chip microcomputer is suitable for scenarios such as sensor networks, the Internet of Things, and white goods that require high-resolution signal processing and low power consumption. For example, smart home appliance control boards, environmental monitoring nodes, etc.
