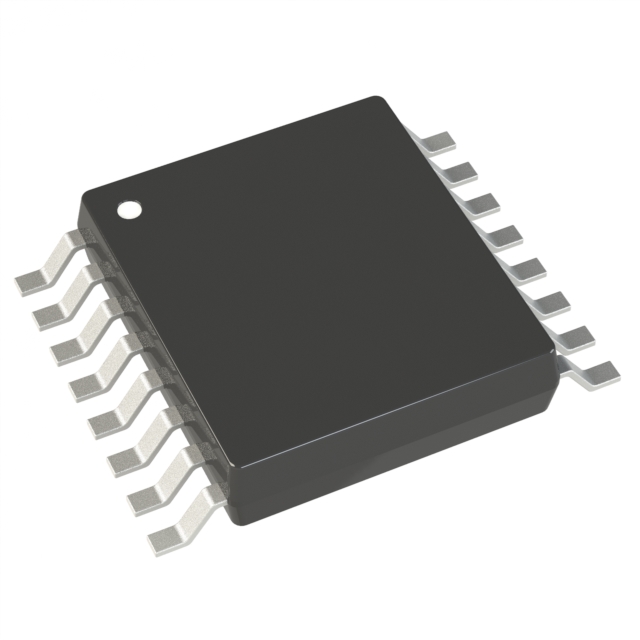

AD5504BRUZ (Digital-to-Analogue Converter) High-voltage, four-channel 12-bit voltage output DAC, TSSOP-16

AD5504BRUZ Specifications:

Product Type: Digital-to-Analogue Converter - DAC

Series: AD5504

Resolution:    12-bit

Number of Channels:    4-channel

Settling Time:    35 μs

Output Type:    Voltage-buffered

Interface Type:    DSP, Microwire, QSPI, SPI

Analogue Supply Voltage:    10 V to 62 V

Digital Supply Voltage:    2.3 V to 5.5 V

Minimum Operating Temperature:    -40°C

Maximum Operating Temperature:    +105°C

Mounting Style:    SMD/SMT

Package/Case:    TSSOP-16

DNL - Differential Nonlinearity:    ±1 LSB

INL - Integral Nonlinearity:    ±3 LSB

Number of Converters:    4 Converters

Operating Power Current:    3 mA

AD5504BRUZ Product Features:

Four-channel high-voltage DAC

12-bit resolution

Pin-selectable 30 V or 60 V output range

Integrated precision reference

Low-power serial interface with readback capability

Integrated temperature sensor alarm function

Power-on reset

Simultaneous update via LDAC

Wide operating temperature range: −40°C to +105°C
