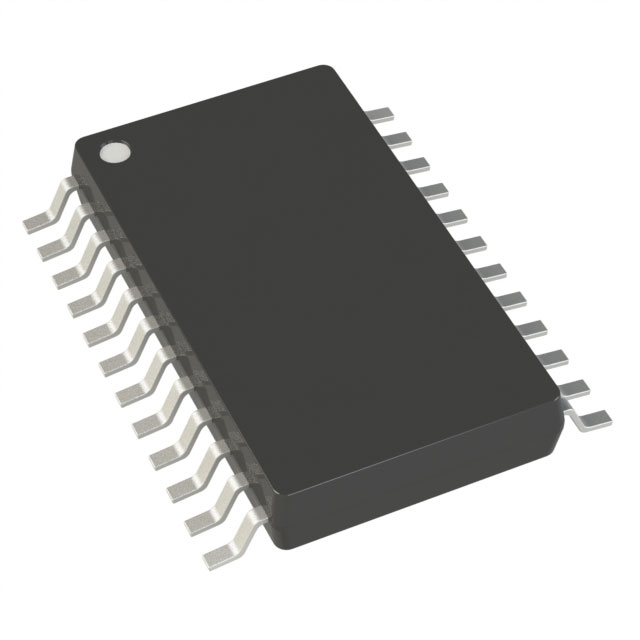

AD5754RBREZ: Four-channel, 16-bit digital-to-analogue converter (DAC), TSSOP-24

Model: AD5754RBREZ

Package: TSSOP-24

Type: 16-bit digital-to-analogue converter (DAC)

Description: Full four-channel, 16-bit, serial input, single-ended/differential voltage output DAC

Overview:

The AD5754RBREZ is a four-channel, 16-bit serial input, voltage output digital-to-analogue converter (DAC) powered by a single supply (+4.5 V to +16.5 V) or dual supplies (±4.5 V to ±16.5 V). The AD5754RBREZ guarantees monotonicity, with an integral non-linearity (INL) of ±16 LSB (maximum), low noise, and a settling time of 10 μs (maximum). The AD5754RBREZ uses a serial interface and can operate at clock rates up to 30 MHz, compatible with DSP and microcontroller interface standards. With dual buffering, all DACs can be updated simultaneously.

AD5754RBREZ Specifications:

Product Type: Digital-to-Analogue Converter (DAC)

Series: AD5754R

Resolution: 16 bits

Sampling Rate: 1.1 MS/s

Number of Channels:    4 Channels

Settling Time:    10 us

Output Type:    Voltage

Interface Type:    3-Wire

Analogue Supply Voltage:    +/- 4.5 V to +/- 16.5 V

Digital Supply Voltage:    2.7 V to 5.5 V

Minimum Operating Temperature:    - 40℃

Maximum Operating Temperature:    + 85℃

Mounting Style:    SMD/SMT

Package/Enclosure:    TSSOP-24

DNL - Differential Non-Linearity:    ±1 LSB

INL - Integral Non-Linearity:    ±16 LSB

Number of Converters:    4 Converters

Pd - Power Dissipation:    310 mW
