The AD5754BREZ is a four-channel, 16-bit serial input, voltage output digital-to-analogue converter (DAC) that operates from a single supply (+4.5 V to +16.5 V) or dual supplies (±4.5 V to ±16.5 V). The AD5754BREZ guarantees monotonicity, with an integral non-linearity (INL) of ±16 LSB (maximum), low noise, and a settling time of 10 μs (maximum). The AD5754BREZ uses a serial interface and can operate at clock rates up to 30 MHz, while being compatible with DSP and microcontroller interface standards. With dual buffering, all DACs can be updated simultaneously.

AD5754BREZ Product Features:

Complete four-channel, 16-bit digital-to-analogue converter (DAC)

Single-supply/dual-supply powering

Software-programmable output range

+5 V, +10 V, +10.8 V, ±5 V, ±10 V, ±10.8 V

Integral nonlinearity error: ±16 LSB (maximum); differential nonlinearity error: ±1 LSB (maximum)

Total unadjusted error (TUE): 0.1% FSR (maximum)

Settling time: 10 μs (typical)

Integrated reference voltage buffer

AD5754BREZ Product Attributes:

Bit depth: 16

Number of ADCs: 4

Settling time: 12 μs

Output type: Voltage - Buffered

Differential output: No

Data interface: SPI, DSP

Reference type: External

Voltage - Supply, analogue: ±4.5 V to 16.5 V

Voltage - Supply, digital: 2.7 V to 5.5 V

INL/DNL (LSB): ±16 (maximum), ±1 (maximum)

Architecture: Resistor-String DAC

Operating Temperature: -40°C to 85°C

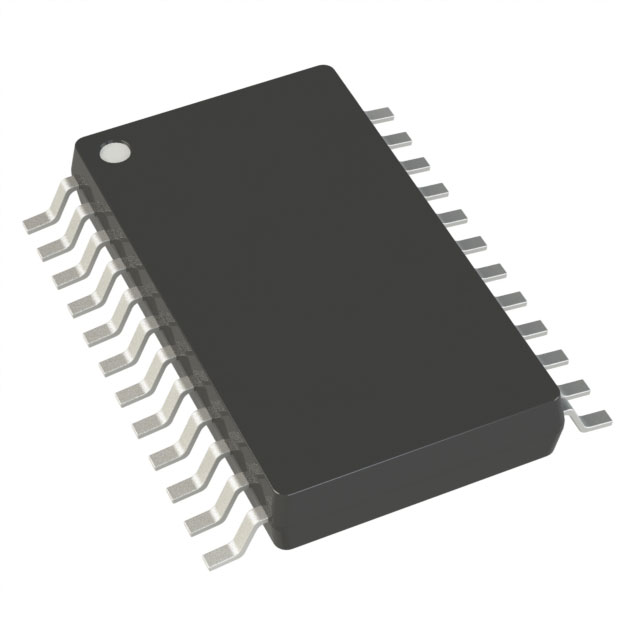

Package/Case: 24-TSSOP (0.173", 4.40mm wide) Bare Pad

Supplier Device Package: 24-TSSOP-EP

Mounting Type: Surface Mount
