AD5754AREZ [ADI] Complete four-channel, 16-bit, serial input, single-ended/differential voltage output DAC

Product details:

The AD5754AREZ is a four-channel, 16-bit serial input, voltage output digital-to-analogue converter (DAC) powered by a single supply (+4.5 V to +16.5 V) or dual supplies (±4.5 V to ±16.5 V). The software-selectable nominal full-scale output range is +5 V, +10 V, +10.8 V, ±5 V, ±10 V, or ±10.8 V. The AD5754AREZ also incorporates an output amplifier, a reference voltage buffer, and proprietary power-on/power-off control circuits.

AD5754AREZ Product Attributes:

Bit Count: 16

Number of DACs: 4

Settling Time: 12 µs

Output Type: Voltage - Buffered

Differential Output: No

Data interface: SPI, DSP

Reference type: External

Voltage - Supply, analogue: ±4.5 V to 16.5 V

Voltage - Supply, digital: 2.7 V to 5.5 V

INL/DNL (LSB): ±16 (maximum), ±1 (maximum)

Architecture: Resistor-string DAC

Operating temperature: -40°C to 85°C

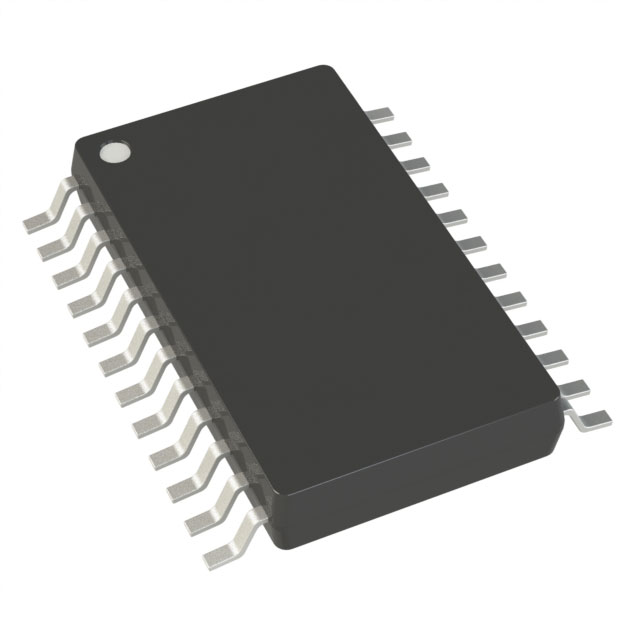

Package/Case: 24-TSSOP (0.173", 4.40mm wide) bare pad

Supplier Device Package: 24-TSSOP-EP

Mounting Type: Surface Mount

AD5754AREZ Applications:

Industrial Automation

Closed-loop servo control, process control

Automotive test and measurement

Programmable logic controllers
