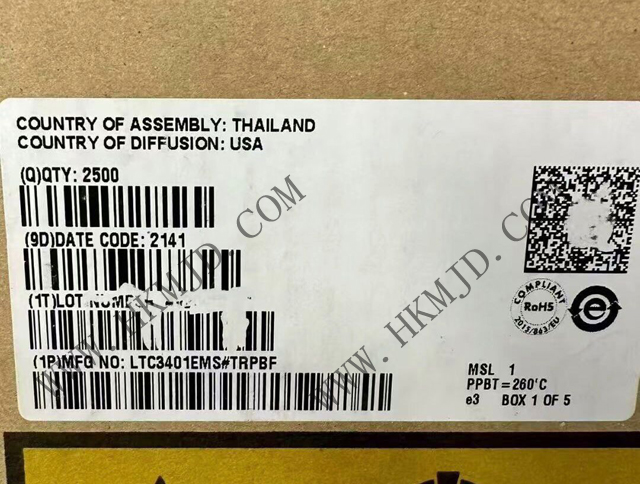

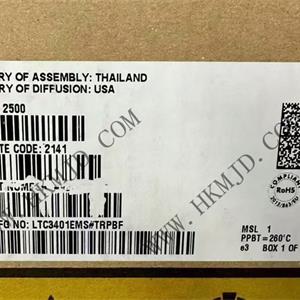

LTC3401EMS: 1A, 3MHz, Micro-Power Synchronous Boost Converter, MSOP-10

Product Details:

Model: LTC3401EMS

Package: MSOP-10

Type: Synchronous Boost Converter

Overview:

The LTC3401EMS is a high-efficiency, fixed-frequency boost DC/DC converter operating from input voltages below 1V. The device incorporates a 0.16Ω N-channel MOSFET switch and a 0.18Ω P-channel synchronous rectifier. Switching frequency reaches up to 3MHz and is configurable via an external timing resistor, whilst the oscillator may synchronise to an external clock. An external Schottky diode is optional but may marginally improve efficiency.

LTC3401EMS Product Features:

Synchronous rectification: Efficiency up to 97%

1A switch rated current

Fixed frequency operation up to 3MHz

Wide input range: Operates from 0.5V to 5.5V

Very low quiescent current: 38µA in Burst Mode® operation

Adjustable output voltage from 2.6V to 5.5V

Start-up voltage: 0.85V (typical)

No external Schottky diode required (VOUT < 4.3V)

Synchronisable switching frequency

Burst Mode® enable control

Anti-ring control reduces switching noise

PGOOD output

OPTI-LOOP® compensation

Very low shutdown current: < 1µA

Small 10-pin MSOP package

LTC3401EMS Applications:

Handheld instruments

Cordless telephones

Wireless mobile phones

GPS receivers

Battery backup

CCFL backlights
