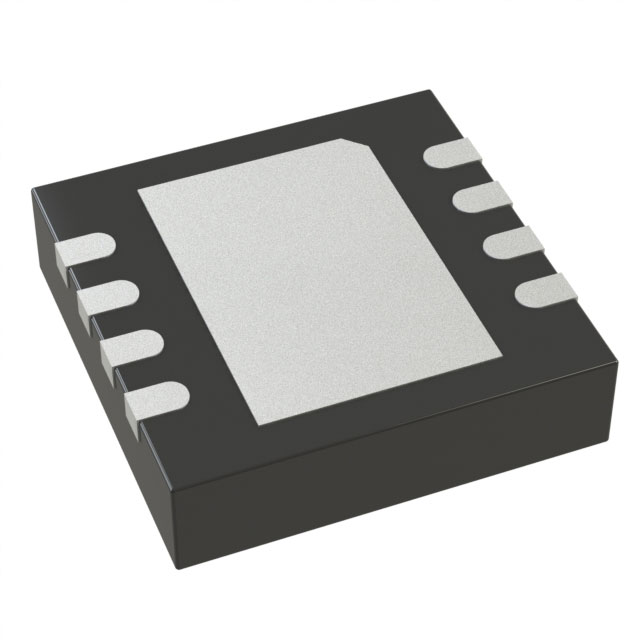

The LT5538EDD is a high-performance RF power detector operating from 40 MHz to 3.8 GHz, housed in an 8-pin DFN package (3 mm × 3 mm), specifically designed for high-precision RF power measurement. The chip features a logarithmic linear dynamic range of 75dB, enabling precise measurement of RF signal power across a wide frequency range. It employs a single-ended RF input and outputs a linear DC voltage that is linearly proportional to the input power (in dBm).

LT5538EDD Specifications

Frequency Range: 40MHz to 3.8GHz

Dynamic Range: 75dB logarithmic linear dynamic range

Temperature Stability: Output remains stable across the full temperature range, with variation not exceeding ±1dB

Detection Sensitivity: -72dBm

Input Type: Single-ended RF input

Power Consumption: Low supply current of 29mA, supply voltage from 3V to 5.25V

Package: 8-pin DFN package, dimensions 3mm × 3mm

Application Areas

The LT5538EDD is suitable for various RF applications, including:

Received Signal Strength Indication (RSSI): Used to measure the strength of the received signal.

RF Power Measurement and Control: Precisely measures the power of RF signals.

RF/IF Power Detection: Detects the power of RF and IF signals.

Receiver RF/IF Gain Control: Controls the gain of the receiver.

Envelope Detection: Detects the envelope of the signal.

Amplitude Shift Keying (ASK) Receiver: Used for receiving ASK modulated signals.
