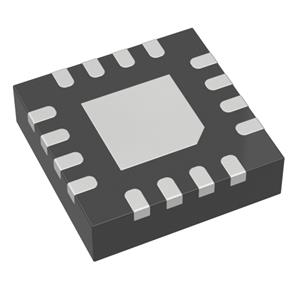

The ADL5910ACPZN is an envelope threshold detector with an operating frequency range of DC to 6 GHz. Its main features include:

Wide input frequency range: DC to 6 GHz

RF input range: 45 dB (-30 dBm to +15 dBm*)

Input envelope threshold detection and latching

Programmable threshold and latch reset function

Fast response time: 20 ns (from RFIN to latch)

All functions: stable temperature and power supply

Operating voltage: 3V and 5V (-55 °C to +125°C)

Low power consumption: 2.5mA (Power supply voltage: 3.0V

Power consumption in off mode: <100 µA

16-pin, 3mm x 3mm LFCSP package

The ADL5910ACPZN RF input signal can drive the internal envelope detector. The output voltage of the envelope detector can drive a comparator that is also driven by a user-defined input voltage. When the voltage of the envelope detector exceeds the user-defined threshold voltage, the event will be locked in the S-R flip-flop. The response time from the RF input signal exceeding the user-programmed threshold voltage to the output latch is 20 ns. The latch event remains on the trigger until a reset pulse is applied.

The RF input of ADL5910ACPZN adopts DC coupling, supporting operation at any low input frequency. It operates with a 3V or 5V power supply and has a power consumption of 2.5mA. When A logic low signal is applied to the ENBL pin, the disabled mode reduces this current to 100 µA.

Application field

ADL5910ACPZN is suitable for a variety of application fields, including:

Transmitter Signal Strength Indication (TSSI)

Wireless power amplifier input and output protection

Wireless receiver input protection
