The IKZA75N65SS5 650V IGBT is designed to meet the needs of switching applications between 10kHz and 40kHz, thereby increasing efficiency, shortening product time-to-market, reducing circuit design complexity and optimizing PCB material costs. The TRENCHSTOP™ 5 vertical IGBT is the ideal choice to meet customers' requirements for superior efficiency and high power density.

Product Specifications:

IGBT type: trench type field cut-off

Voltage-emitter breakdown (Max) : 650 V

Current - Collector (Ic) (Max) : 80 A

Current-collector pulse (Icm) : 300 A

Vce(on) for different Vge and Ic (Max.) : 1.7V @ 15V, 75A

Power - Max. : 395 W

Switching power: 240µJ (on), 750µJ (off)

Input type: Standard

Grid charge: 164 nC

Td (On/off) at 25°C: 22ns/145ns

Test conditions: 400V, 75A, 5.6ohm, 15V

Operating temperature: -40°C ~ 175°C (TJ)

Installation type: Through hole

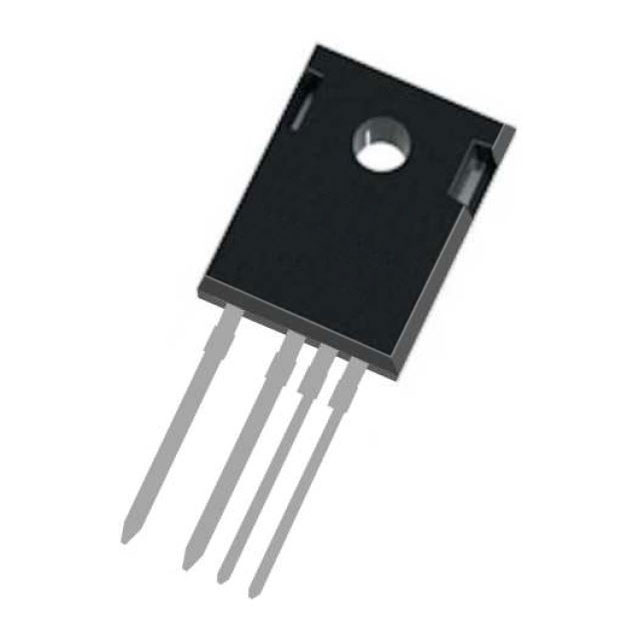

Package/housing: TO-247-4

Supplier device package: PG-TO247-4-3
