The IHW40N135R5 1350V IGBT was developed and optimized to meet the stringent requirements of induction cooking applications. With high efficiency, excellent thermal performance and low EMI filtering requirements, the device reduces overall system cost and design effort. Thanks to improved thermal performance and reduced power consumption, higher reliability is ensured even under higher ambient temperature and stress conditions. Soft switching enables better EMI behavior, reducing filtering requirements and system costs.

Product Specifications:

IGBT type: trench type field cut-off

Voltage-emitter breakdown (Max) : 1350 V

Current - Collector (Ic) (Max) : 80 A

Current-collector pulse (Icm) : 120 A

Vce(on) (Max.) : 1.95V @ 15V, 40A for different Vge and Ic

Power - Max. : 394 W

Switching energy: 2mJ (off)

Input type: Standard

Grid charge: 305 nC

Td (On/off) at 25°C: -/410ns

Test conditions: 600V, 40A, 10 ohms, 15V

Operating temperature: -40°C ~ 175°C (TJ)

Installation type: Through hole

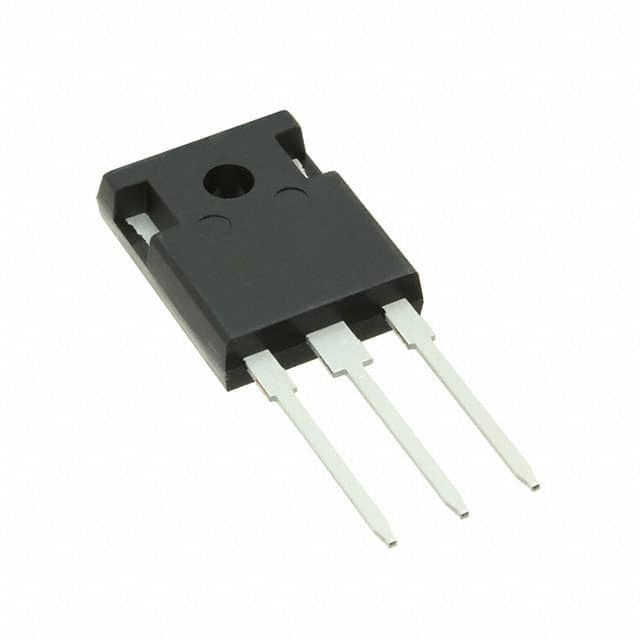

Package/housing: TO-247-3

Supplier device package: PG-TO247-3

Basic product ID: IHW40N135
