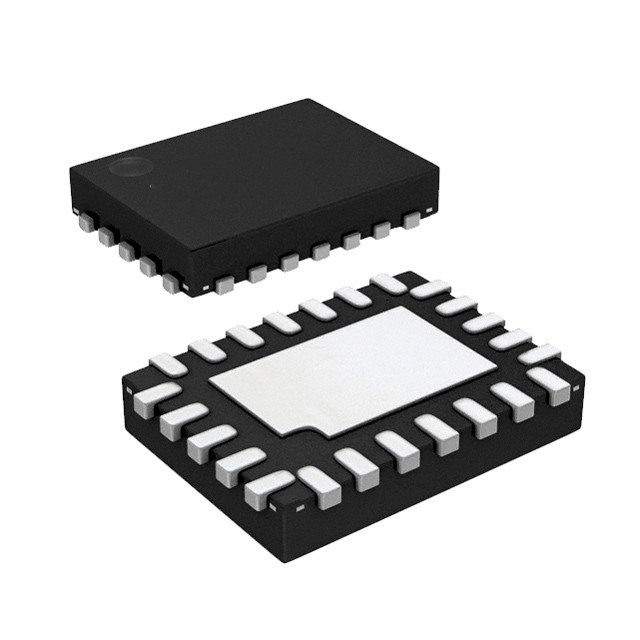

The ISL15102AIRZ is a single-port differential line driver specifically developed for power line communication (PLC) applications. This device is designed to drive reline loads while maintaining the high linearity required for orthogonal frequency division multiplexing (OFDM) PLC modem links.

The ISL15102AIRZ has a disabled control pin (DIS). In the disabled mode, the line driver enters the low-power mode, and the output maintains a high impedance in the presence of a high received signal amplitude, thereby improving the integrity of the TDM received signal. The ISL15102AIRZ features built-in thermal protection. When the internal temperature reaches 150°C (typical value), the driver shuts down to prevent damage to the equipment. The internal input CM buffer can maximize the dynamic range and reduce the number of external components in the application circuit.

Main functional characteristics

Single differential driver

Internal VCM, without external filter capacitors

90MHz signal bandwidth

A slew rate of 900V/μs

Single power supply ranging from 8V to 28V, with an absolute maximum of 30V

Supports narrowband and broadband DMT PLCS

-86dB THD (at 200kHz) enters the 50Ω line load

-70dB THD (at 3MHz) enters the 50Ω line load

Control pins used to enable/disable TDM

Thermal shutdown

Application scenarios

The ISL15102AIRZ is suitable for scenarios with high environmental adaptability requirements such as industry and automobiles, and needs to be used in conjunction with specific circuit designs.
