The R7F102G6C2DSP is a general-purpose microcontroller with outstanding low-power performance and rich capacitive touch channels. It belongs to the new generation of RL78/G22 MCUS and can provide cost-effective and powerful sensor solutions. The following are its main specifications:

Core processor: RL78

Kernel specification: 16 bits

Speed: 32MHz

Connection capabilities: CSI, I2C, LINbus, SPI, UART/USART

Peripheral devices: Capacitive touch, LVD, POR, PWM, WDT

I/O count: 15

Program storage capacity: 32KB (32K x 8)

Program memory type: Flash memory

EEPROM capacity: 2K x 8

RAM size: 4K x 8

Voltage - Power supply (Vcc/Vdd) : 1.6V to 5.5V

Data converter: A/D 6x8/10b

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

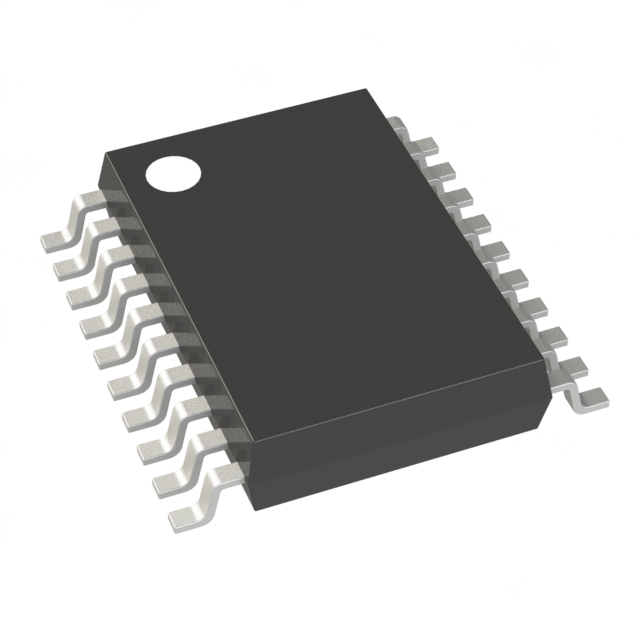

Encapsulation: 20-LSSOP

This product adopts a compact package and is equipped with up to 29 capacitive touch sensor channels. The brand-new multi-electrode connection function (MEC) can shorten the touch detection and measurement time during standby and further reduce power consumption. The RL78/G22 is equipped with sensors featuring high noise resistance and high sensitivity, which are compatible with a variety of materials. This enables the RL78/G22 to offer touch and non-touch interfaces that integrate functionality and design, contributing to a hygienic and comfortable lifestyle.

The R7F102G6C2DSP microcontroller is highly suitable for use in home appliances, consumer electronics, industrial equipment and other fields. It is compatible with the existing RL78 series products and can achieve seamless switching.
