The ZIOL2401BI1R dual-channel line driver is a universal cable driver IC compatible with IO-Link. It offers two independent HV I/O channels and features a variety of configurable system characteristics. The ZIOL2401BI1R is highly configurable and suitable for a wide range of applications in the fields of process and factory automation.

ZIOL2401BI1R is targeted at the physical layer of sensor/actuator systems in factory automation applications and is specifically designed to support the communication standard IO-Link. These output drivers are push-pull devices. At all operating temperatures, their RDS(on) in series mode is less than 3.3Ω. This configuration is stored in the on-chip EEPROM and is automatically loaded into the control register of ZIOL2401 during power-on.

The main features of ZIOL2401BI1R include:

The configurable output current limit for each channel is 56mA to 410mA

Standard cable driver/physical layer transceiver for IO-Link (host and device)

Pendulum rate controlled driver

Various configurable features allow for automatic loading after power-on reset

On-board DC-DC converter

WURQ detection specific to IO-Link

On-chip registers and EEPROM are used for system configuration and status information

The SPI interface for accessing on-chip registers and EEPROM

Digital interface: 3.3V output, 5V withstand voltage input

IC temperature monitoring/diagnosis

Thanks to the adjustable output slew rate control, excellent electromagnetic compatibility (EMC) performance has been achieved

In series mode, RDS(on) is as low as 3.3Ω

Programmable limit of the output current of the driver

Ensure the read/write function of EEPROM throughout the entire operating temperature range

Operating temperature range: -40°C to +85°C

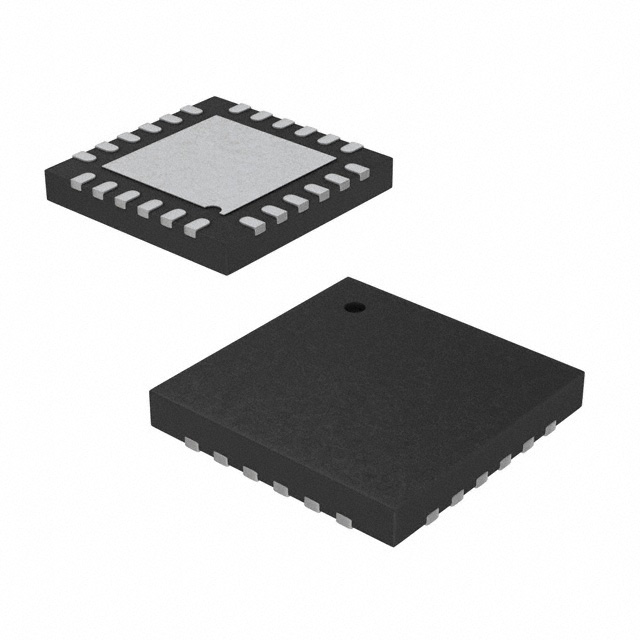

Package type: QFN-24

Package size: 4mm x 4mm

Complies with the RoHS Directive

Application scenarios

Industrial automation

24V line driver/level converter

IO-Link compatible devices

IO-Link compatible host
