DA14531-01000OG2 is a small-sized, low-power Bluetooth 5.1 system-on-chip (SoC) launched by Renesas. It adopts an ARM Cortex-M0 processor with a main frequency of 16MHz and supports Bluetooth Low Energy (BLE) and Bluetooth Mesh protocols. Its core features include:

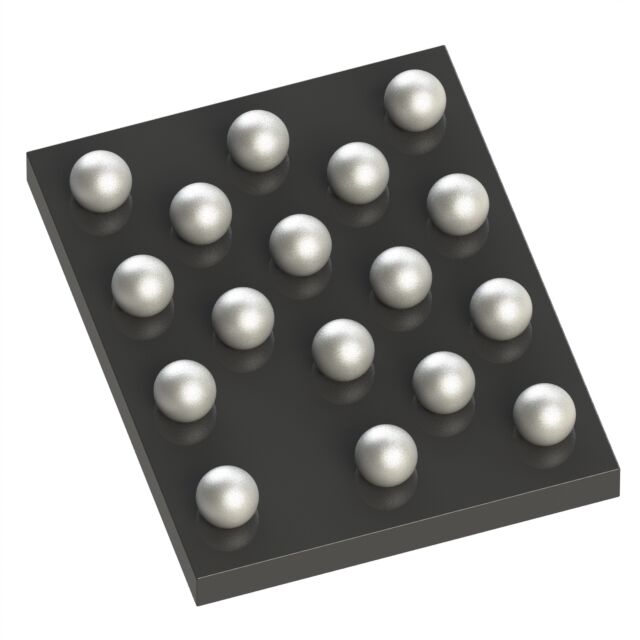

Size and power consumption ‌ : The package size is only 1.7×2.05×0.5mm (WLCSP17), the standby power consumption is as low as 23.75uA/MHz, the transmit current is 3.5mA (0dBm), and the receive current is 2.2mA. ‌

Memory and interface ‌ : Built-in 32K OTP memory, 48K RAM and 144K ROM, supports SPI, UART, I2C and other interfaces, ADC supports 4-channel 10-bit resolution. ‌

Bluetooth standard ‌ : complies with the Bluetooth 5.1 core specification, supports direction discovery (AoA/AoD), multi-point connection and advertising functions. ‌

Furthermore, the high integration of DA14531-01000OG2 SmartBond TINY reduces the system cost: a complete Bluetooth Low Energy system can be achieved simply by adding six tiny external passive components, a crystal and a power supply. To lower the entry threshold, SmartBond TINY also provides an easy-to-use micro module that contains all the necessary components, thus enabling the easy addition of low-power Bluetooth to any application.

Application scenarios

DA14531-01000OG2 is applicable to fields such as medical devices, wireless sensors, toys, industrial appliances, hearing AIDS and electronic tags, especially suitable for scenarios with strict requirements for size and power consumption. ‌
