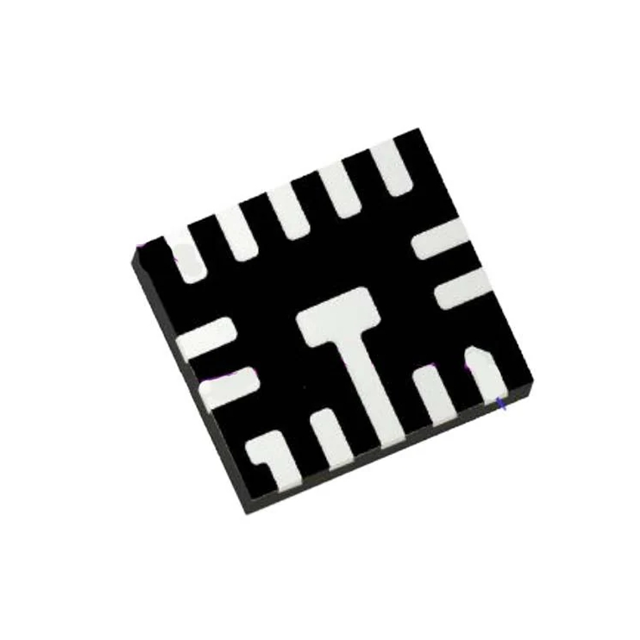

The SLG51003V is a 3-channel LDO power supply GreenPAK™ solution launched by Renesas, featuring a 14-pin TQFN package. It is specifically designed for high-performance analog circuits such as CMOS image sensors, RF devices, and battery-powered equipment.

Key features

Three-channel high-performance LDO IC

Independent input power supply, supporting flexible power configuration

Maximum output current range: 800mA (LDO_LV)

The LDO_LV channel has a bypass mode

High PSRR: 98.5 dB (at 1 kHz) and 68 dB (at 1 MHz) (LDO_HP

Ultra-low output voltage noise: 16μV(LDO_HP)

Low dropout voltage: 10mV(LDO_LV) per 100mA load

Adjustable conversion speed and current limit

The GPIO/I²C (1.2V to 5V), configuration, control options and power sequencer that users can set independently

GreenPAK combines functionality and delayed macro cell resources

All channels have the capacity for peak current

The I²C slave address with optional user pins

The configuration, control options and built-in power sequencer that users can set independently

Easy-to-use free development software

Achieve large-scale production rapidly

Off mode IQ: 300nA

The small plastic TQFN-14 package (2mm x 2.2mm x 0.55mm) enables an economical and cost-effective PCB solution

Application scenarios

Advanced sensor applications

RF applications and wireless interfaces

Battery-powered equipment
