DA14531-01000FX2 SmartBond TINY is a small-sized, low-power Bluetooth ® 5.1 system-on-chip (SoC) that reduces the cost of adding low-power Bluetooth (LE) to any system and brings mobile connectivity to places that were previously inaccessible. It has triggered a wave of billions of Internet of Things devices, and SmartBond TINY™ is at the core of all these devices.

The DA14531-01000FX2 is based on the powerful 32-bit Arm® Cortex®-M0+, featuring integrated memory and a full suite of analog and digital peripherals. It is highly energy-efficient and achieved a record-breaking 18,300 points in the latest iot connectivity EEMBC benchmark test, IoTMark™.

Main specifications

Type: TxRx + MCU

Radio Frequency Series/Standard: Bluetooth

Protocol: Bluetooth v5.1

Modulation: -

Frequency: 2.4GHz

Data rate (maximum) : 1Mbps

Power - Output: 2.5dBm

Sensitivity: -94 DBM

Storage capacity: 48kB RAM, 144kB ROM

Serial interfaces: ADC, GPIO, I2C, SPI, UART

GPIO: 12

Voltage - Power supply: 1.8V to 3.6V

Current - Reception: 2.2mA to 5mA

Current - transmission: 3.5mA to 8mA

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

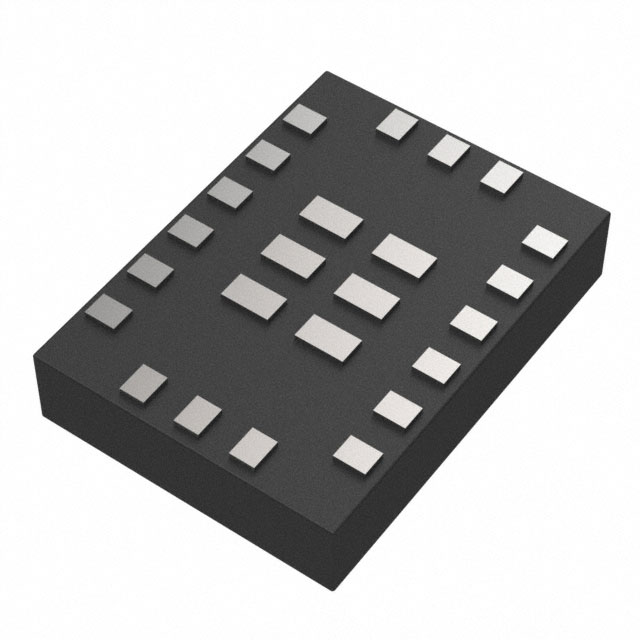

Package: 24-FCGQFN (2.2x3)

Application scenarios

The DA14531-01000FX2 is applicable to fields such as medical devices, wireless sensors, toys, industrial appliances, hearing AIDS and electronic tags, and is particularly suitable for scenarios with strict requirements for size and power consumption. ‌
