The TAS6684QPHDRQ1 is a four-channel, digital input, high-voltage, Class D audio amplifier that supports a power supply voltage up to 45V. Combining an output current of up to 13A, this device can provide ultra-high output power and high-fidelity audio under both high-impedance and low-impedance loads.

Key parameters

Type: Class D

Output type: 4 channels (four paths)

Maximum output power x number of channels under different loads: 218W x 4@ 4 ohms; 118W x 4 @ 8 ohms

Voltage - Power supply: 4.5V to 45V

Feature: -

Installation type: Surface mount type

Operating temperature: -40°C to 125°C (TA)

Grade: Automotive grade

Qualification: AEC-Q100

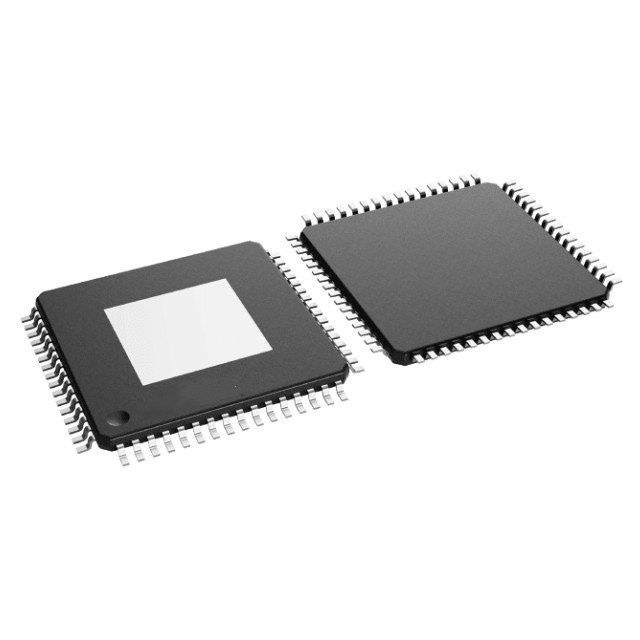

Package: 64-HTQFP (14x14)

The TAS6684QPHDRQ1 integrates DC and AC load diagnostic functions, which can determine the status of the connected load before enabling the output stage. To optimize system efficiency, the DSP integrated in TAS6684QPHDRQ1 supports H-class envelope tracking control, eliminating the need to develop complex tracking software and enabling local boost control without an external microcontroller.

Application field

• Automotive external amplifier

• Car audio host
