The OPA1633DR is a fully differential audio amplifier designed to drive high-performance audio analog-to-digital converters (ADCs) or serve as a pre-driver for Class D amplifiers.

The OPA1633DR can achieve outstanding audio quality, extremely low noise, large output voltage swing and high current drive. The OPA1633DR features an outstanding gain bandwidth of 200MHz and an ultra-fast slew rate of 80V/µs, enabling extremely low distortion. A very low input voltage noise of 1.1nV/√Hz can further provide a larger signal-to-noise ratio and dynamic range.

Technical Specification

Amplifier type: Standard

Number of circuits: 1

Output type: Differential

Pressure swing rate: 80V/µs

Gain-bandwidth product: 200 MHz

-3db bandwidth: 200 MHz

Current - Input bias: 6.8 µA

Voltage - Input compensation: 200 µV

Current - Power supply: 11mA

Current - Output/Channel: 85 mA

Voltage - Span (minimum value) : 4 V

Voltage - Span (maximum value) : 35 V

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

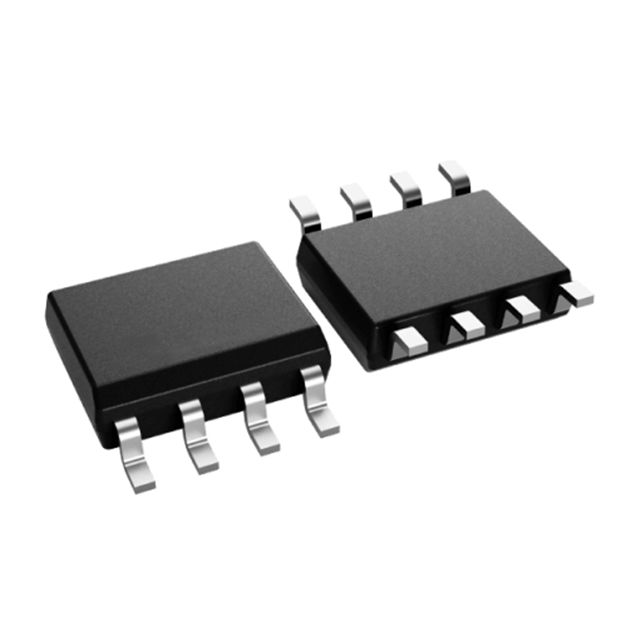

Package/Housing: 8-SOIC

The application of OPA1633DR

Professional audio mixer or control plane

Professional microphones and wireless systems

Professional speaker system

Professional audio amplifier

Soundbar

Turntable

Professional camera

Amplifiers for guitars and other instruments

Data Acquisition (DAQ

Pin-compatible type upgraded to OPA1632
