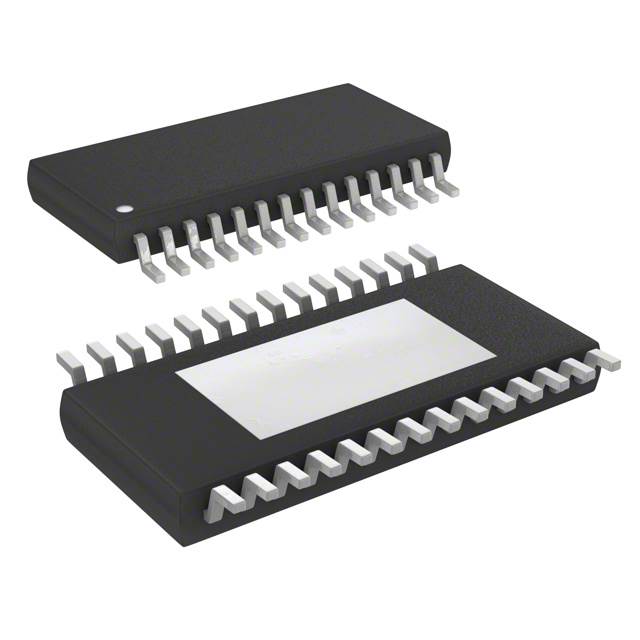

For picture reference, please see the specifications
< >

Commodity Model:TAS6511QPWPRQ1

Trade Name:Audio Amplifiers

Brand:TI

Particular Year:25+

Package:HTSSOP-28

Delivery Date:New and Original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
TAS6511QPWPRQ1
Package
HTSSOP-28
Describe
Automotive 45W 2MHz 1-channel digital input Class-D audio amplifier with current sense

Product Description

TAS6511QPWPRQ1 is a mono-channel, digital-input, Class-D audio amplifier that supports 2MHz switching frequency enabling a cost and size-optimized single-channel audio amplifier design. The device operates from 4.5V to 19V and delivers up to 30W (14.4V, 4Ω, 10% THD+N) and up to 50W (14.4V, 2Ω, 10% THD+N). The device integrates DC and AC load diagnostics to determine the status of the connected load before enabling the output stage. Additionally, the device can monitor the output load condition while in PLAY mode with or without audio using real-time load diagnostics which operates independently from the host and audio input.


Feature Of TAS6511QPWPRQ1

AEC-Q100 qualified for automotive applications

Temperature grade 1: –40°C to +125°C, TA

General operation

4.5V to 19V supply voltage, 40V load dump

Support for 1.8V and 3.3V I/O’s

I2C control with 8 address options

<0.5W idle power loss at 14.4V, <5uA max PVDD shutdown loss

Output current sensing via I2S or TDM

No need for external circuitry

Real-time load diagnostics

Monitor output conditions while playing audio

Open load, Shorted load, Short-to-power, Short-to-ground detection

Integrated DSP processing

Thermal monitoring and foldback

PVDD monitoring and foldback

Clip detection

Low Latency Path, >70% reduced signal delay at 48kHz

DC and AC Standby load diagnostics

Audio inputs

I2S and TDM support up to TDM16

Input sample rates: 16, 32, 44.1, 48, 96, 192kHz

Audio outputs

384kHz to 2MHz configurable output switching frequency

Up to 7A channel output current

30W (14.4V, 4Ω, 10% THD+N)

50W (14.4V, 2Ω, 10% THD+N)

Audio Performance

THD+N <0.02% (4Ω, 1W, 1kHz)

108dB SNR

Output noise: 41µVRMS at 14.4V, A-weighting

Protection

Output short protection

Speaker GuardTM Pro power limiter

Configurable overtemperature warning and shutdown

I2C temperature and supply voltage readout

DC offset, undervoltage and overvoltage


Applications Of TAS6511QPWPRQ1

Acoustic vehicle alerting system (AVAS)

Emergency call (eCall)

Automotive head unit

Telematics control unit

Automotive cluster display
