The SPC58EC70E1F0C1X high-performance MCU is based on Power Architecture® technology and is specifically designed for mission-critical automotive applications that place great emphasis on the strictest safety standards and real-time performance. The following are its core parameters:

Core processor: e200z4

Core specification: 32-bit dual-core

Speed: 160MHz

Connection capabilities: CANbus, I2C, LINbus, SPI, UART/USART

Peripherals: DMA, POR, temperature sensor, WDT

Program storage capacity: 2MB (2M x 8)

Program memory type: Flash memory

EEPROM capacity: 128K x 8

RAM size: 512K x 8

Voltage - Power supply (Vcc/Vdd) : 3V to 5.5V

Data converter: A/D 10/12b SAR

Oscillator types: external, internal

Operating temperature: -40°C to 125°C (TA)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount type

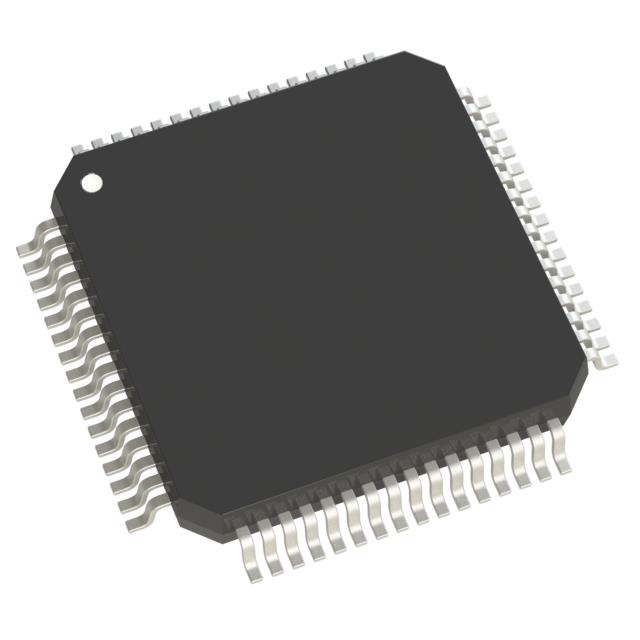

Encapsulation: 64-eTQFP

The SPC58EC70E1F0C1X automotive microcontroller features outstanding performance: up to 3 cores and 6 Mbyte embedded Flash memory, as well as independent SAR and sigma-delta ADCs, ensuring speed, accuracy and high-resolution sensing. This high-performance series of products CAN operate at high temperatures and ensure enhanced connectivity through a rich set of communication interfaces, including Ethernet, FlexRay, CAN FD, LIN and SENT.

Application scenarios

The SPC58EC70E1F0C1X product is designed to achieve the highest ASIL-D safety level and is fully suitable for advanced powertrain applications and hybrid electric vehicle (HEV)/electric vehicle (EV) motor drive, electric steering, active suspension applications, anti-lock braking, and advanced driver assistance systems.
