The SPC582B50E1CD00X automotive microcontroller is built on the SPC5x product and introduces new features to meet future requirements, such as ASIL-B classification, a large number of ISO CAN-FD channels, and offers significant power and performance improvements (per mW MIPS).

Core performance

The SPC582B50E1CD00X adopts the e200z2 single-core 32-bit Power Architecture processor, with a main frequency of up to 80 MHz. It supports floating-point operations and variable-length encoding (VLE), and meets the ASIL-B security level requirements. ‌

Main specifications

Core processor: e200z2

Kernel specification: 32-bit

Speed: 80MHz

Connection capabilities: CANbus, I2C, LINbus, SPI, UART/USART

Peripheral devices: DMA, POR, WDT

Program storage capacity: 512KB (512K x 8)

Program memory type: Flash memory

EEPROM capacity: 64K x 8

RAM size: 96K x 8

Voltage - Power supply (Vcc/Vdd) : 3V to 5.5V

Data converter: A/D 27x12b SAR

Oscillator types: external, internal

Operating temperature: -40°C to 105°C (TA)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount type

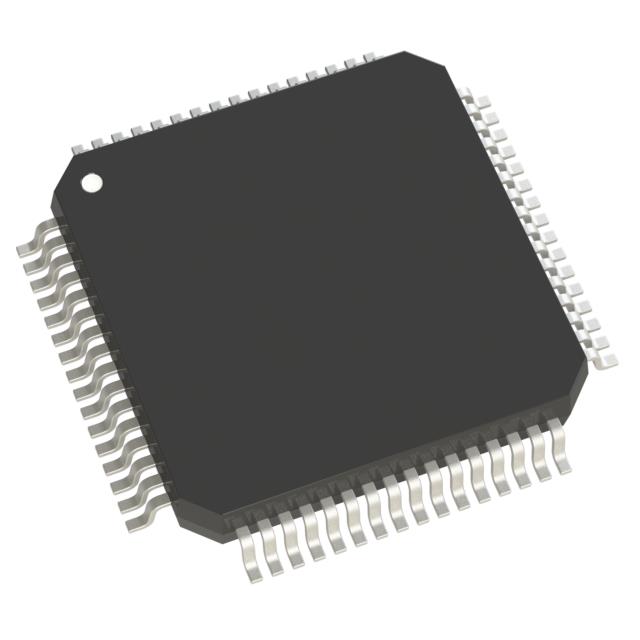

Encapsulation: 64-eTQFP

In addition, the SPC582B50E1CD00X features 48 I/O interfaces, a multi-channel DMA controller, and a watchdog timer. It supports communication protocols such as CAN-FD, I2C, and LIN, making it suitable for high-reliability scenarios like automotive electronic control units (ECUs).
