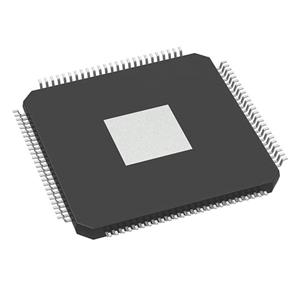

The SPC584C70E3E0K1X is a 32-bit Power Architecture microcontroller launched by STMicroelectronics. It adopts the e200z4 core with a main frequency of up to 120MHz and supports variable length Instruction Coding (VLE). It is equipped with 2MB of on-chip flash memory and 448KB of SRAM, supporting read operations during program/erase operations and EEPROM simulation. ‌

Technical specifications

Core processor: e200z4

Kernel specification: 32-bit

Speed: 120MHz

Connection capabilities: CANbus, I2C, LINbus, SPI, UART/USART

Peripherals: DMA, POR, temperature sensor, WDT

Program storage capacity: 2MB (2M x 8)

Program memory type: Flash memory

EEPROM capacity: 128K x 8

RAM size: 448K x 8

Voltage - Power supply (Vcc/Vdd) : 3V to 5.5V

Data converter: A/D 10/12b SAR

Oscillator types: external, internal

Operating temperature: -40°C to 125°C (TA)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount type

Encapsulation: 100-eTQFP

The SPC584C70E3E0K1X also supports ultra-low power standby mode and is equipped with an intelligent wake-up unit, providing a fast wake-up solution. The operating voltage range is 3V to 5.5V, and the operating temperature range is -40°C to 125°C. ‌

Application field

The SPC584C70E3E0K1X microcontroller is suitable for automotive electronic control systems, industrial automation and other fields. It features high integration and safety characteristics, and can meet the strict requirements of real-time performance and reliability.
