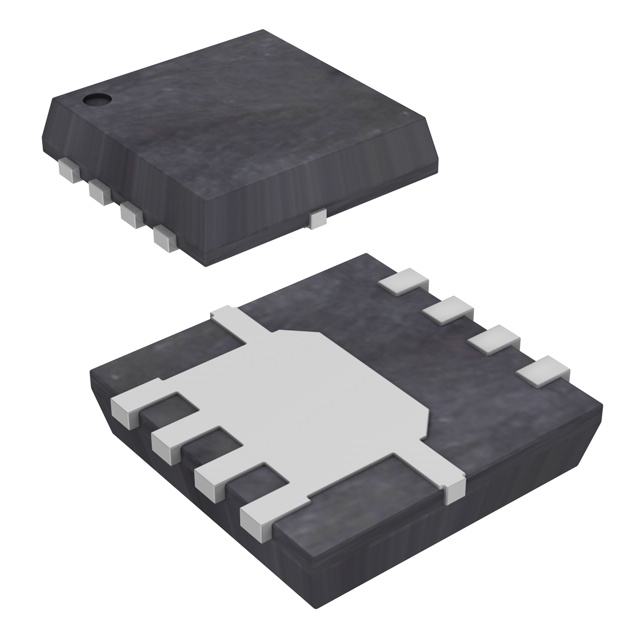

The NVTFS015P03P8Z is an automotive grade power MOSFET launched by (onsemi) in a 5x6mm flat lead package designed for compact and efficient design with high thermal performance. The wettable side option can be used to enhance optical inspection. NVTFS015P03P8Z complies with the EC-Q101 standard and is suitable for automotive applications.

Technical Specification

FET type: P channel

Technology: MOSFET (Metal Oxide)

Drain-source voltage (Vdss) : 30 V

Current - Continuous drain (Id) at 25°C: 17A (Ta), 88.6A (Tc)

Driving voltage (maximum Rds On, minimum Rds On) : 4.5V, 10V

The on-resistance (maximum value) at different ids and Vgs: 7.5 milliohms @ 12A, 10V

Vgs(th) (maximum value) at different ids: 3V@250 µA

Gate charge (Qg) (maximum value) at different Vgs: 105 nC@10 V

Vgs (maximum value) : ±25V

Input capacitance (Ciss) (maximum value) at different Vds: 2706 PPF @15 V

FET function: -

Power dissipation (maximum) : 3.2W (Ta), 88.2W (Tc)

Operating temperature: -55°C to 175°C (TJ)

Grade: Automotive grade

Qualification: AEC-Q101

Installation type: Surface mount type

Supplier device package: 8-WDFN (3.3x3.3)

Typical applications

• Power load switch

• Protection: Reverse current, overvoltage and reverse negative voltage

• Battery management
