Trade Name:P-Channel MOSFETs
Brand:TI
Particular Year:25+
Package:SO-8FL
Delivery Date:New and original
Stock: 2000pcs

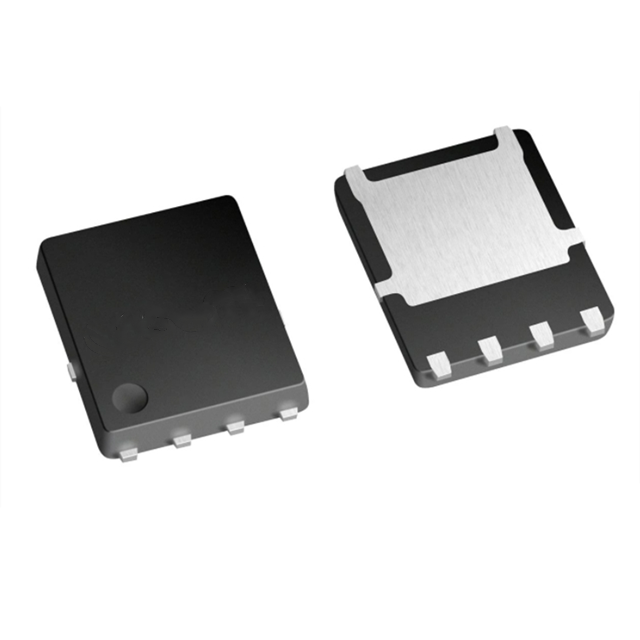

The NTMFS003P03P8Z is A single P-channel power MOSFET manufactured by onsemi with a drain-source voltage of -30 V and a continuous drain current of -234 A . The on-resistance of the device is 1.8 mΩ, operating temperature range is -55 ° C to +150 ° C, suitable for a wide range of high-power applications .
Technical Specification
FET type: P channel
Technology: MOSFET (Metal Oxide)
Drain-source voltage (Vdss) : 30 V
Current - Continuous drain (Id) at 25°C: 19.1A (Ta), 234A (Tc)
Driving voltage (maximum Rds On, minimum Rds On) : 4.5V, 10V
The on-resistance (maximum value) at different ids and Vgs: 1.8 milliohms @ 23A, 10V
Vgs(th) (maximum value) at different ids: 3V@250 µA
Gate charge (Qg) (maximum value) at different Vgs: 167 nC@4.5 V
Vgs (maximum value) : ±25V
Input capacitance (Ciss) (maximum value) at different Vds: 12120 pF @ 15 V
FET function: -
Power dissipation (maximum) : 900mW (Ta), 139W (Tc)
Operating temperature: -55°C to 150°C (TJ)
Installation type: Surface mount type
Package/Shell: SO-8FL
Typical applications of NTMFS003P03P8Z
• Power load switch
• Protection: Reverse current, overvoltage and reverse negative voltage
• Battery management
