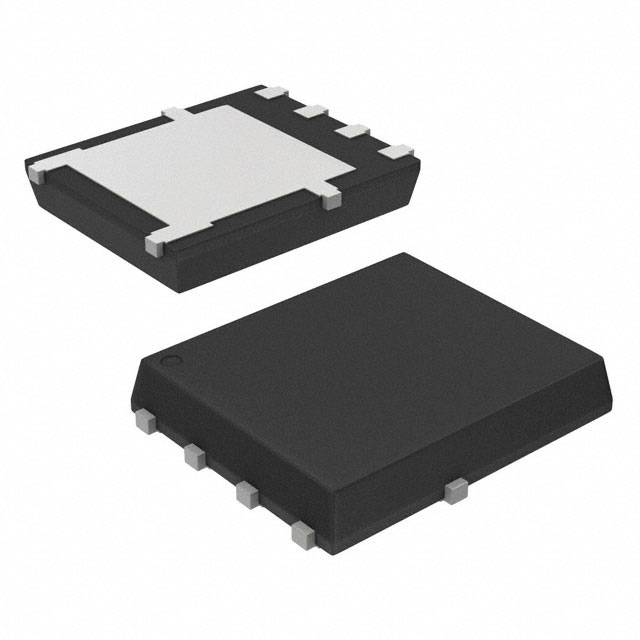

The NVMFS2D3P04M8L is A power MOSFET of P-channel type, manufactured by onsemi, in DFN5 package, with a drain-source voltage of -40 V and a continuous drain current of -222 A (‌‌). The on-resistance of this device is 2.2mΩ, and its operating temperature range is from -55℃ to +175℃. It is suitable for automotive electronics.

Key specifications

FET type: P channel

Technology: MOSFET (Metal Oxide)

Drain-source voltage (Vdss) : 40 V

Current at 25°C - Continuous drain (Id) : 31A (Ta), 222A (Tc)

Driving voltage (maximum Rds On, minimum Rds On) : 4.5V, 10V

The on-resistance (maximum value) at different ids and Vgs: 2.2 milliohms @ 30A, 10V

Vgs(th) (maximum value) at different ids: 2.4V @ 2.7mA

Gate charge (Qg) (maximum value) at different Vgs: 157 nC@10 V

Vgs (maximum value) : ±20V

Input capacitance (Ciss) (maximum value) at different Vds: 5985 pF @ 20 V

FET function: -

Power dissipation (maximum) : 3.8W (Ta), 205W (Tc

Operating temperature: -55°C to 175°C (TJ)

Grade: Automotive grade

Qualification: AEC-Q101

Installation type: Surface mount type

Supplier device package: 5-DFN (5x6) (8-SOFL)
